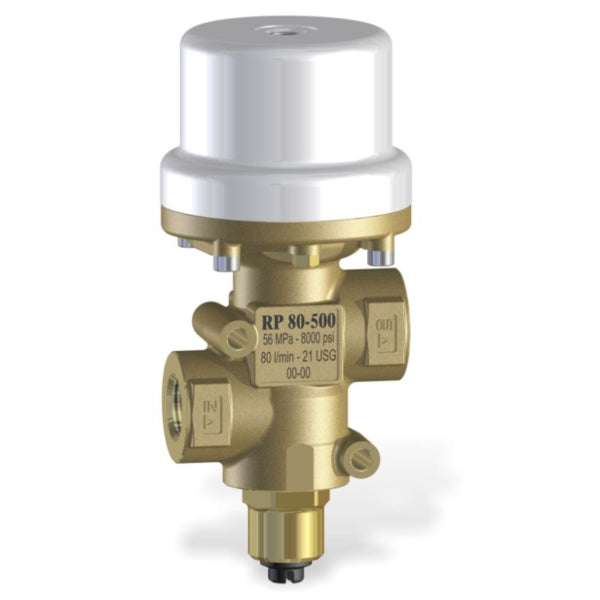

30.3250.00 - RP 80/500 Pneumatic On-Off Valve
Description
- Pneumatically operated ON-OFF valve
- Automatically stops fluid flow if compressed air pressure is lost
- Designed for high pressure applications up to 500 bar
- Maximum flow rate of 80 litres per minute
- Constructed from brass, stainless steel and anodised aluminium
- Stainless steel valve seat and ball
- 1/2" BSP female inlet and outlet connections
- 1/4" BSP female compressed air connection
- Requires 7 bar compressed air pressure for operation at maximum performance
- Suitable for remote control of high pressure fluid lines
Technical Data
| Specification | Value |
|---|---|
| Maximum Flow Rate | 80 l/min (21 USGpm) |
| Rated Pressure | 500 bar / 50 MPa / 7,250 psi |
| Permissible Pressure | 560 bar / 56 MPa / 8,100 psi |
| Rated Temperature | 90°C / 195°F |
| Required Air Pressure | 7 bar / 0.7 MPa / 101 psi |
| Inlet | 1/2" BSP Female |
| Outlet | 1/2" BSP Female |
| Compressed Air Connection | 1/4" BSP Female |
| Weight | 2.657 kg |
| Construction | Brass, stainless steel and anodised aluminium |
| Seat and Ball | Stainless steel |
Operation
The RP 80/500 is a pneumatically operated ON-OFF valve designed for remote control of high pressure fluid lines. Compressed air opens the valve and, if the air pressure is removed or lost, the valve closes and prevents the passage of fluid.
With a maximum working flow of 80 l/min and a rated pressure of 500 bar, the RP 80/500 is suitable for demanding industrial high pressure cleaning and fluid control applications.
Weight: 2.66 kg
