SPECK Kolbenpumpfabrik
NP10/10-150 Bareshaft Pump
NP10/10-150 Bareshaft Pump
Prices From
£537.50
Product
Info
Info
Flow
10.6
Pressure
150
Power
3.3
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 24 mm
- Plunger Dia. = 18 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

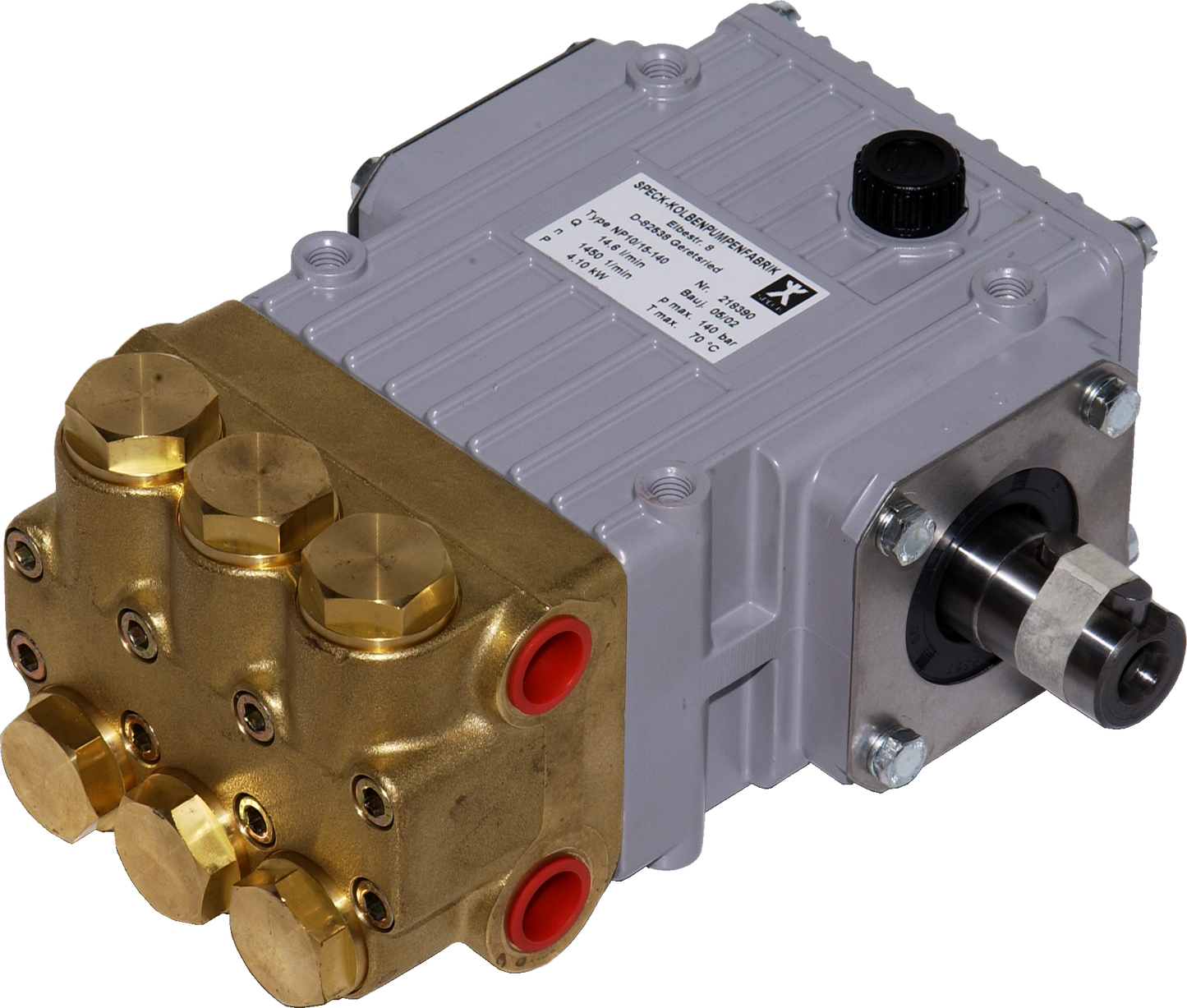

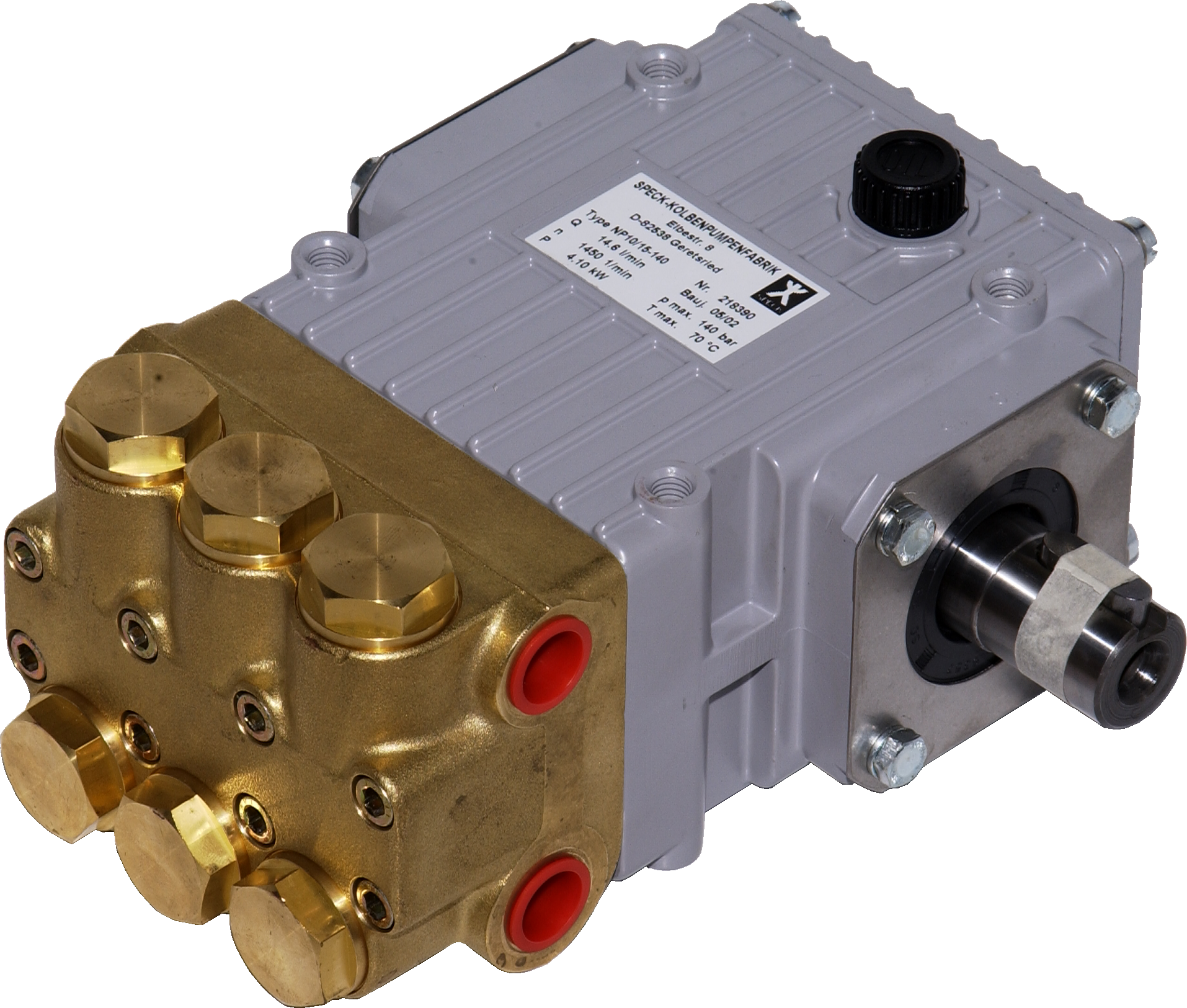

The NP10/10-150 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.7137 | NP10/10-150 |
| 00.4170 | NP10/10-140RE 316 Stainless Steel Pump |
| 00.5100 | NP10/10-140 S Seawater Pump |
| 00.5435 | NP10/10-140 Nickel Plated Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
