NP10/15-150 C Bareshaft Pump
NP10/15-150 C Bareshaft Pump
Prices From
£812.50
Product
Info
Info
Flow
7.3
Pressure
150
RPM
750
Max Temp
-40
Key Information
- Crankshaft Diameter = 24 mm
- Plunger Dia. = 18 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

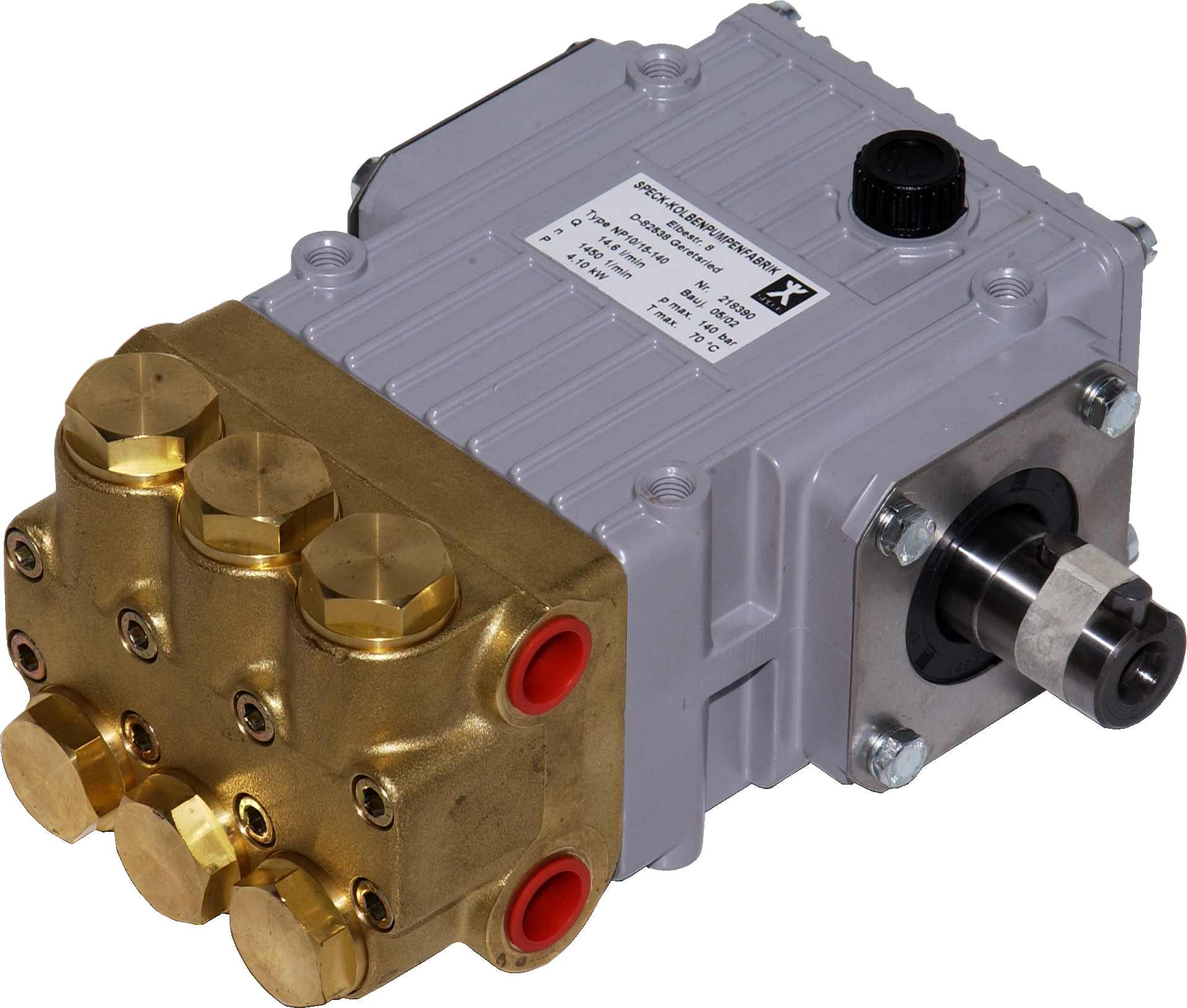

The NP10/15-150 C Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.7194 | NP10/15-150C |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
Regular price
£812.50 GBP
Regular price
£812.50 GBP
Sale price
£812.50 GBP
Unit price
/
per
Compatible Bell Housings
