SPECK Kolbenpumpfabrik

NP30/30-500 Bareshaft Pump

NP30/30-500 Bareshaft Pump

Prices From £5,531.25
Product
Info
Flow
28
Pressure
500
Power
28.600000
RPM
1450
Max Temp
40
Key Information
  • Crankshaft Diameter = 30 mm
  • Plunger Dia. = 18 mm
  • Inlet Connection = G3/4"
  • Outlet Connection = G1/2"

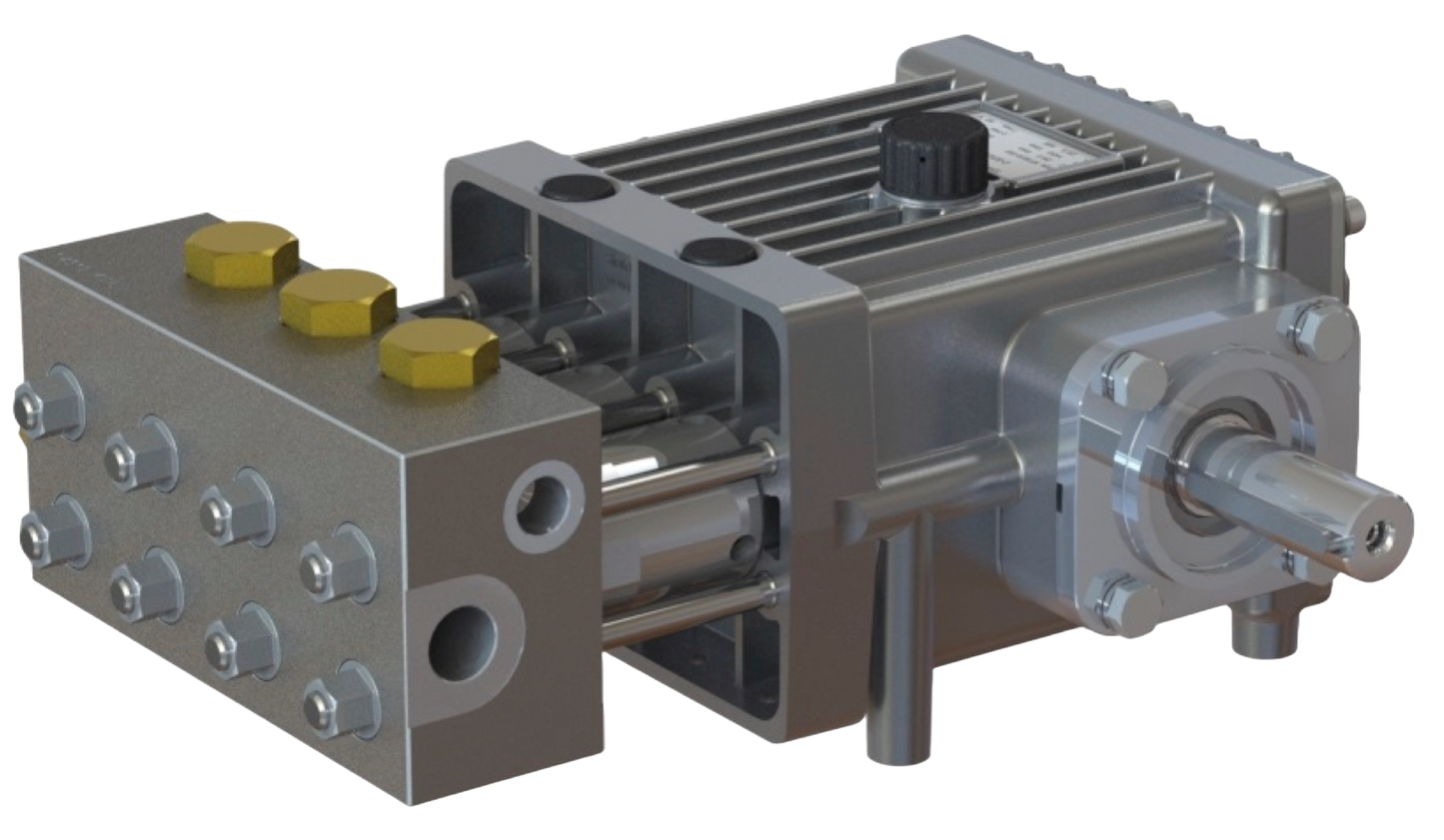

The NP30/30-500 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Pump Information

Versions Available

Part Number Description
00.7368 NP30/30-500

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.

£5,531.25 GBP
£5,531.25 GBP £5,531.25 GBP
Sale Available to Order
View full details
