SPECK Kolbenpumpfabrik

P22/28-100 Bareshaft Pump

P22/28-100 Bareshaft Pump

Prices From £1,187.50
Product
Info
Flow
28.3
Pressure
100
Power
5.8
RPM
1450
Max Temp
70
Key Information
  • Crankshaft Diameter = 22 mm
  • Plunger Dia. = 22 mm
  • Inlet Connection = G3/4"
  • Outlet Connection = G1/2"

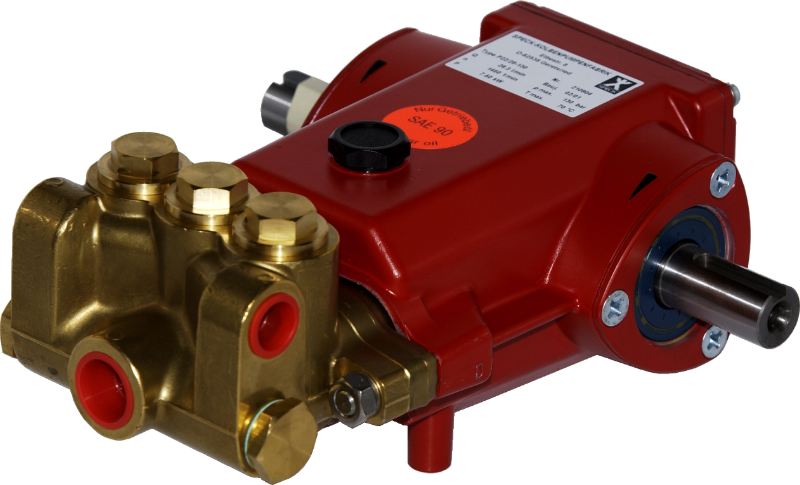

The P22/28-100 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Pump Information

Versions Available

Part Number Description
00.3449 P22/28-100

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
