SPECK Kolbenpumpfabrik

P45/46-320 Bareshaft Pump

P45/46-320 Bareshaft Pump

Prices From £6,756.25
Product
Info
Flow
46
Pressure
320
Power
30.1
RPM
1000
Max Temp
40
Key Information
  • Crankshaft Diameter = 35 mm
  • Plunger Dia. = 22 mm
  • Inlet Connection = G1 - 1/4"
  • Outlet Connection = G1"

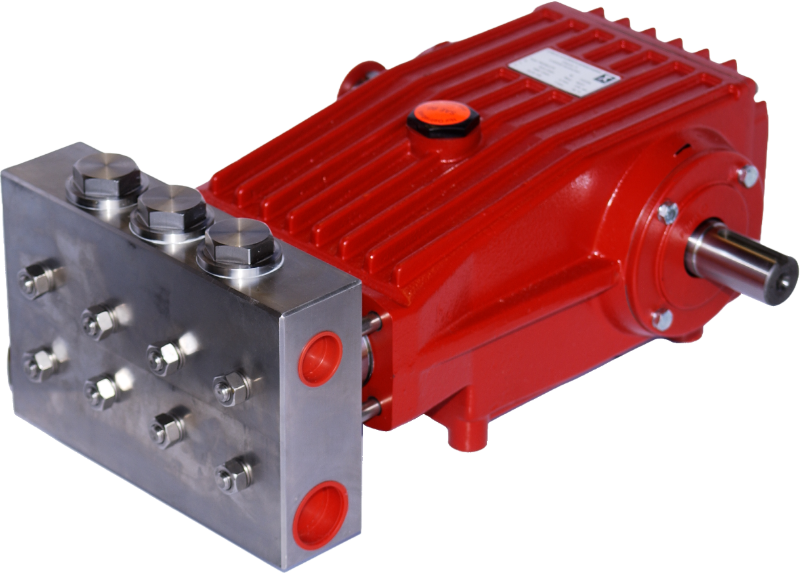

The P45/46-320 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Pump Information

Versions Available

Part Number Description
00.5444 P45/46-320

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.

£6,756.25 GBP
£6,756.25 GBP £6,756.25 GBP
Sale Available to Order
View full details
