SPECK Kolbenpumpfabrik

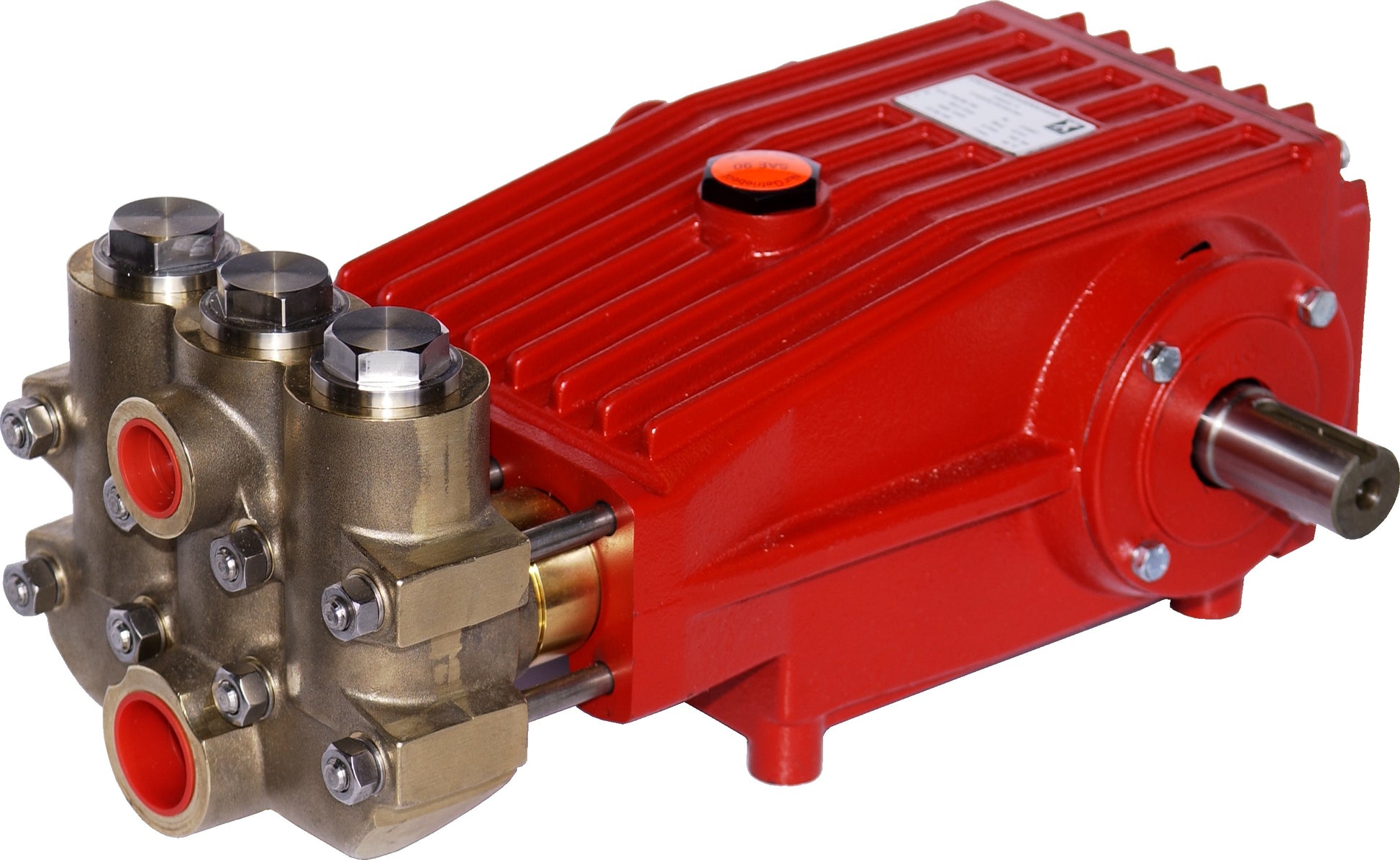

P45/75-180 Bareshaft Pump
P45/75-180 Bareshaft Pump
Prices From
£5,512.50
Product
Info
Info
Flow
74.5
Pressure
180
Power
27.4
RPM
1000
Max Temp
40
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 28 mm
- Inlet Connection = G1 - 1/4"
- Outlet Connection = G1"
The P45/75-180 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.3958 | P45/75-180 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
Regular price
£5,512.50 GBP
Regular price
£5,512.50 GBP
Sale price
£5,512.50 GBP
Unit price
per
Couldn't load pickup availability
Compatible Unloader Valves
