SPECK Kolbenpumpfabrik

P62/175-120 Bareshaft Pump

P62/175-120 Bareshaft Pump

Prices From £13,743.75
Product
Info
Flow
175.9
Pressure
120
Power
41.6
RPM
800
Max Temp
60
Key Information
  • Crankshaft Diameter = 42 mm
  • Plunger Dia. = 45 mm
  • Inlet Connection = G2 - 1/2"
  • Outlet Connection = G1 - 1/4"

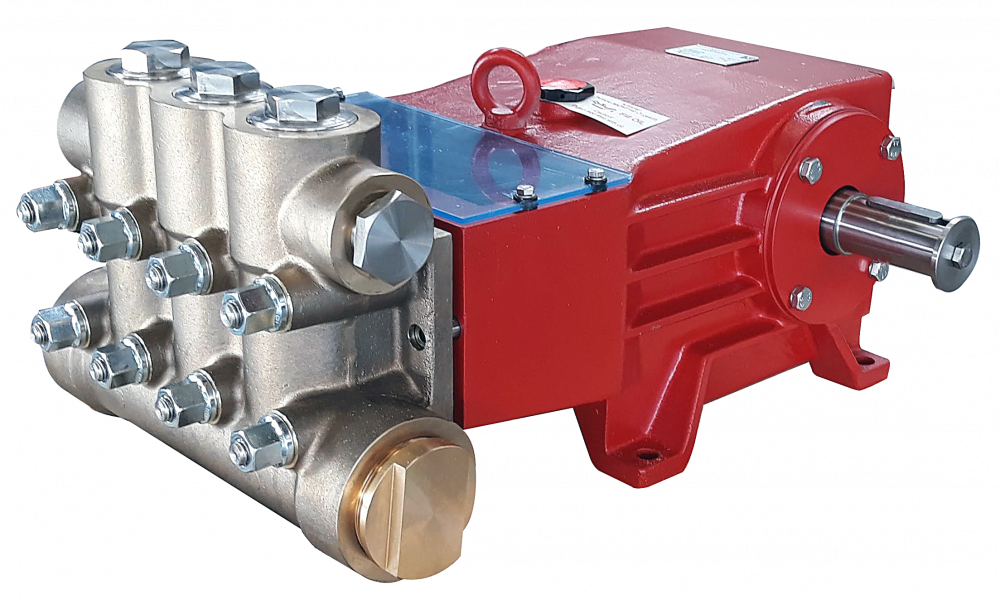

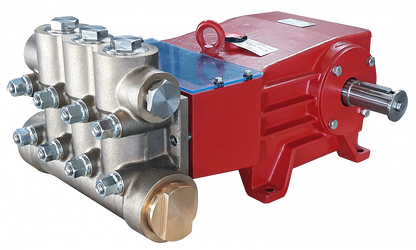

The P62/175-120 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Pump Information

Versions Available

Part Number Description
00.5136 P62/175-120
00.5149 P62/175-120 R 303 Stainless Steel Pump
00.6632 P62/175-120 RE 316 Stainless Steel Pump
00.5150 P62/175-120S

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
