SPECK Kolbenpumpfabrik

P71/250-110 Bareshaft Pump

P71/250-110 Bareshaft Pump

Prices From £21,806.25
Product
Info
Flow
249.1
Pressure
110
Power
53.9
RPM
700
Max Temp
60
Key Information
  • Crankshaft Diameter = 48 mm
  • Plunger Dia. = 55 mm
  • Inlet Connection = G2 - 1/2"
  • Outlet Connection = G1 - 1/4"

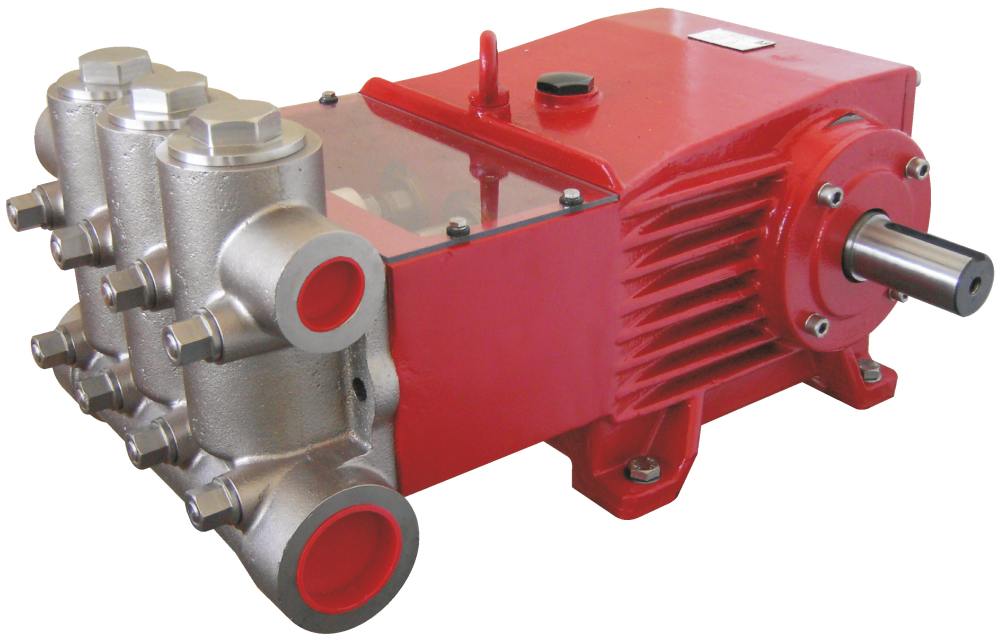

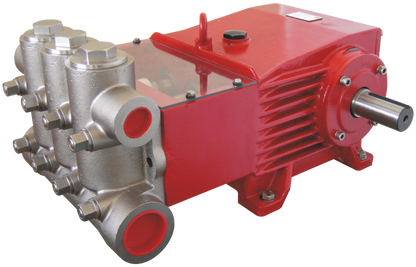

The P71/250-110 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Pump Information

Versions Available

Part Number Description
00.4310 P71/250-110
00.4355 P71/250-100 G Cast Iron Headed Pump
00.4437 P71/250-100 R 303 Stainless Steel Pump
00.4758 P71/250-100 RE 316 Stainless Steel Pump
00.4789 P71/250-100 S Seawater Pump

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.

£21,806.25 GBP
£21,806.25 GBP £21,806.25 GBP
Sale Available to Order
