P81/400-140 GUG Bareshaft Pump
P81/400-140 GUG Bareshaft Pump
Prices From
£24,575.00
Product
Info
Info
Flow
400
Pressure
140
Power
106
RPM
580
Max Temp
30
Key Information
- Crankshaft Diameter = 70 mm
- Plunger Dia. = 65 mm
- Inlet Connection = G3"
- Outlet Connection = G1 - 1/4"

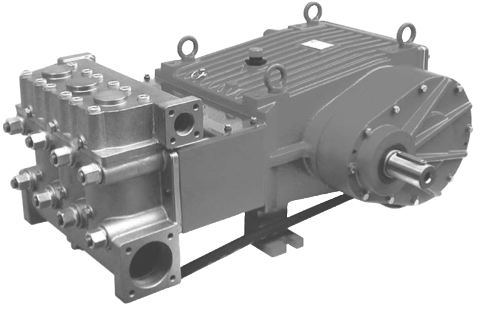

The P81/400-140 GUG Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Cast Iron
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Cast Iron
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.6124 | P81/400-140 GUG |
00.5599 | P81/400-140 G Cast Iron Headed Pump |
00.6368 | P81/400-140 RE 316 Stainless Steel Pump |
00.6222 | P81/400-140 S Seawater Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
