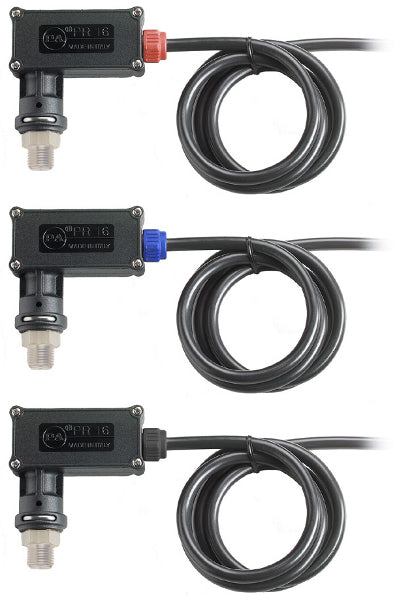

PR16 - Pressure Switch Stainless Steel - 250 Bar

Electro-mechanical device, which, upon reaching a pre-set fluid pressure, opens or closes an electrical control contact.
- Microswitch with very high resistance openings.
- Electrical insulation: IP55
- Possibility to choose from 3 different pressure settings acting on the electrical switch.
- Three core cable
- Threaded connections; either in Sst or Brass versions.

Black Collar = 40 Bar Switching Pressure

Red Collar = 25 Bar Switching Pressure

Blue Collar = 15 Bar Switching Pressure
