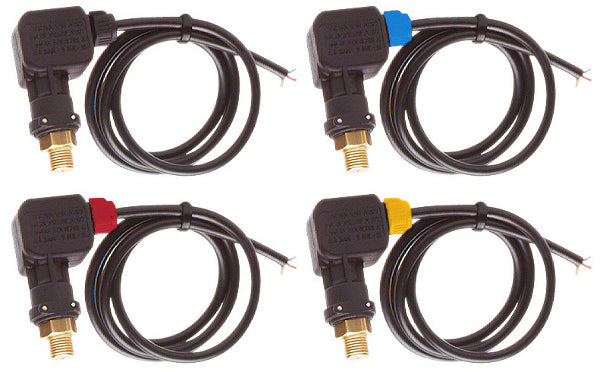

PR5 - Pressure Switch Brass - 250 Bar

Fluid operating electro-mechanical device, which, upon reaching a pre-set pressure, opens or closes an electrical control contact - Microswitch with very high resistance openings
- Considerable resistance to high current values.
- Compact overall dimensions
- Electrical insulation: IP55
- Possibility to choose from 4 different pressure settings acting on the electrical switch.
- Three core cable.
- Two threaded connection versions.

250 bar - 25 MPa - 3650 psi

350 bar - 35 MPa - 5000 psi

75 °C - 165 °F

250 V

6 (2) A

55 IP - 0

Brass
