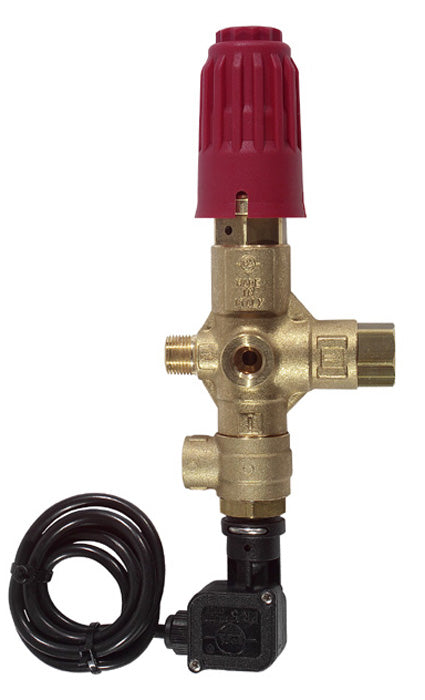

VB350 With Handwheel And Microswitch

VB350 With Handwheel And Microswitch

Prices From £268.75
Product
Info
Flow
Upto 70 l/min
Pressure
Upto 350 Bar

Description

Pressure regulating unloader valve connected to an electric switch, electro-mechanic type, which when reaching a preset calibrated pressure, opens or closes an electric contact.

At gun shut off, the water flow is bypassed at reduced pressure.

The valves supplied are NOT PRESSURE ADJUSTED.

Common Features

Part No.

60.1730.00 VB350 Unloader Valve With Handwheel And Pressure Switch

Inlet. 3/8 Bsp M

Outlet. 3/8 BSP F

Bypass . 3/8 Bsp F

Rated Pressure -

 350bar - 35 MPa - 5100psi

Permissible Pressure -

390 bar - 39 MPa - 5650 psi

Rated Flow Rate - 40l/min - 10.5 USGpm

Rated Temperature - 90 °C

Max Current. Strength 6 (2) A

Max Voltage 250 V

Regular price £268.75 GBP
Regular price £268.75 GBP Sale price £268.75 GBP
Sale Available to Order
View full details
