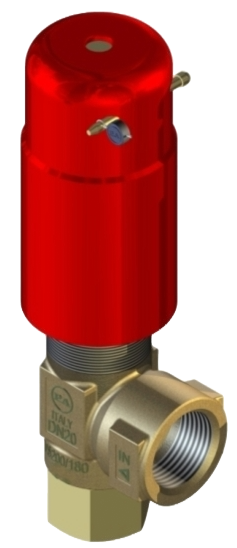

VS200/200 - With Option To Self Seal Calibration

Description

Pressure relief valve regulates the bypass of the fluid with a minimum variation of pressure.

The valves supplied are NOT PRESSURE ADJUSTED. They become a SAFETY device when adjusted by the installer on the machine. See Technical Manual.

Common Features

Part No.

60.5115.00 VS200/200 Relief / Safety Valve - With Option To Self Seal Calibration

Inlet. 3/4 Bsp F

Bypass . 3/4 Bsp F

Rated Pressure -

60.5115.00- 200 bar - 20 MPa - 2900 psi

Permissible Pressure -

60.5115.00.15 - 220 bar - 22 MPa - 3200 psi

Rated Flow Rate - 200 l/min - 53 USGpm

Rated Temperature - 90 °C
