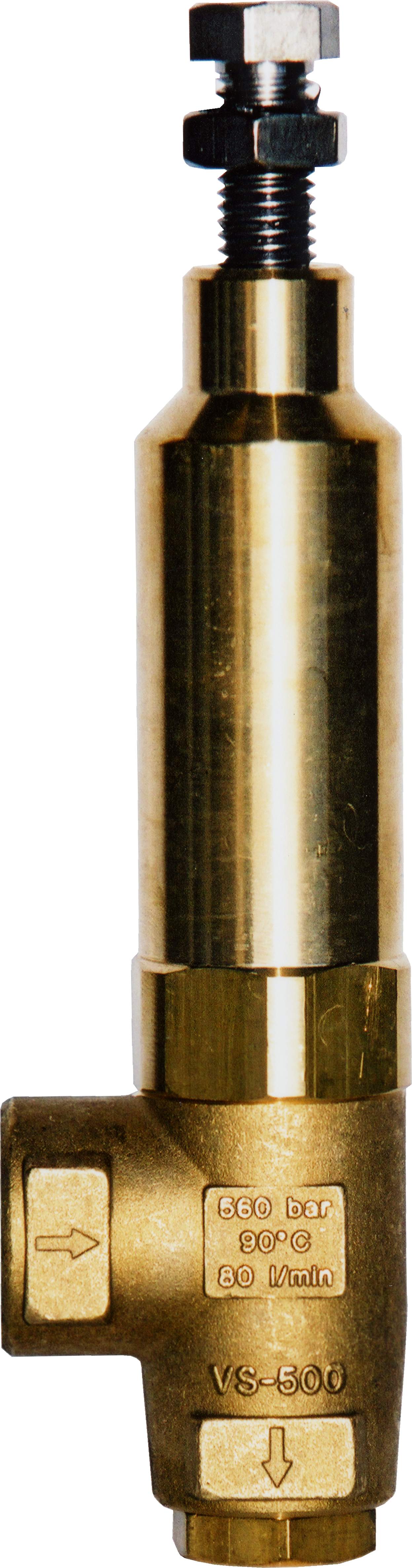

VS500 Relief / Safety Valve

Description

VS500 Pressure relief valve regulates the bypass of the fluid with a minimum variation of pressure.

The valves supplied are NOT PRESSURE ADJUSTED. They become a SAFETY device when adjusted by the installer on the machine. See Technical Manual.

Common Features

Part No.

60.5200.00 VS500 Relief / Safety Valve

Inlet. 1/2 Bsp F

Bypass . 3/8 Bsp F

Rated Pressure -

60.5200.00- 500 bar - 50 MPa - 7250 psi

Permissible Pressure -

60.5200.00 - 560 bar - 56 MPa - 8100 psi

Rated Flow Rate - 80 l/min - 21 USGpm

Rated Temperature - 90 °C
