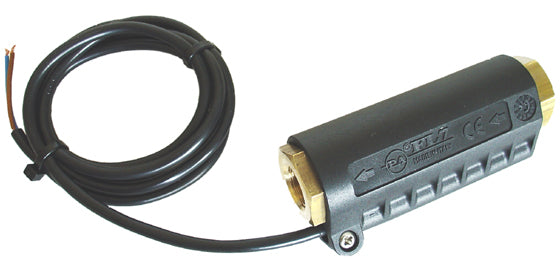

28.0400.10 - FL7 Flow & Pressure Switch With Probe

28.0400.10 - FL7 Flow & Pressure Switch With Probe

Prices From £95.63

Description

Electro-mechanical device in which the fluid passage moves a magnetized piston that opens an electric circuit.
DN 10
Magnetic drive obtained by the plunging piston movement
Electrical insulation: class IP55
Magnetic probe casing made of antiflame material.

FL7 Flow & Pressure Switch With Probe

Rated Pressure

350 Bar

5100 psi

Permissible Pressure

390 Bar

5650 psi

Rated Flow Rate (Inlet)

30 l/min

7.9 USGpm

Rated Flow Rate (Outlet)

60 l/min

15.8 USGPM

Rated Temperature

75° C

165° F

Inlet

3/8" BSP F

Outlet

3/8" BSP F

Max Voltage

230 V

Max Switch Capacity

60 VA

Max Current Strenght

3A

Electric Cable

1250 mm – 49.2" - 2 x 0.5 mm

Electrical Insulation

IP55

Weight: 0.44 kg

£95.63 GBP
£95.63 GBP £95.63 GBP
Sale Available to Order
