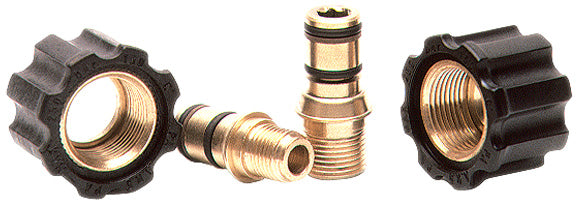

AR1 Extended Revolving M22 Coupler 40l/min - 250 Bar

AR1 Extended Revolving M22 Coupler 40l/min - 250 Bar

Prices From £15.00

Part No. 26.1028.00


Inlet. 1/4 Bsp F


Type. Revolving


Hand nut. AR1 type


Weight. 66 gr. - 2.33 oz.



Part No. 26.1029.00


Inlet. 1/4 Bsp M


Type. Revolving


Hand nut. AR1 type


Weight. 66 gr. - 2.33 oz.


Common Features


Rated Pressure


250 bar - 25 MPa - 3650 psi


Permissible Pressure


280 bar - 28 MPa - 4050 psi


Rated Flow Rate


40 l/min - 10.5 USGpm


Rated Temperature


160 °C - 320 °F


Material


Brass


Additional Notes


Pin √ò14 mm - M22√ó1,5 F


Revolving connection
Inlet Size
£15.00 GBP
£15.00 GBP £15.00 GBP
Sale Available to Order
View full details
