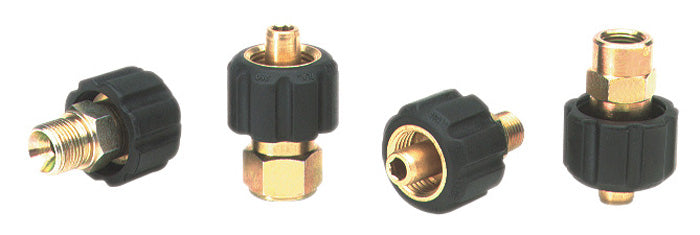

AR7 Screw Coupling 40l/min - 250 Bar

AR7 Screw Coupling 40l/min - 250 Bar

Prices From £17.50

Part No. 26.0750.40

Inlet. 3/8 Bsp F

Hole size. 11 mm - 0.433 in

Weight. 110 gr. - 3.9 oz.

Part No. 26.0750.50

Inlet. 3/8 Bsp M

Hole size. 11 mm - 0.433 in

Weight. 110 gr. - 3.9 oz.

Common Features

Rated Pressure

250 bar - 25 MPa - 3650 psi

Permissible Pressure

280 bar - 28 MPa - 4050 psi

Rated Flow Rate

40 l/min - 10.5 USGpm

Rated Temperature

160 °C - 320 °F

Additional Notes

Pin √ò11mm
Inlet Size
