NP16/15-210 Bareshaft Pump
NP16/15-210 Bareshaft Pump
Prices From
£732.25
Product
Info
Info
Flow
15
Pressure
210
Power
6.2
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 24 mm
- Plunger Dia. = 18 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

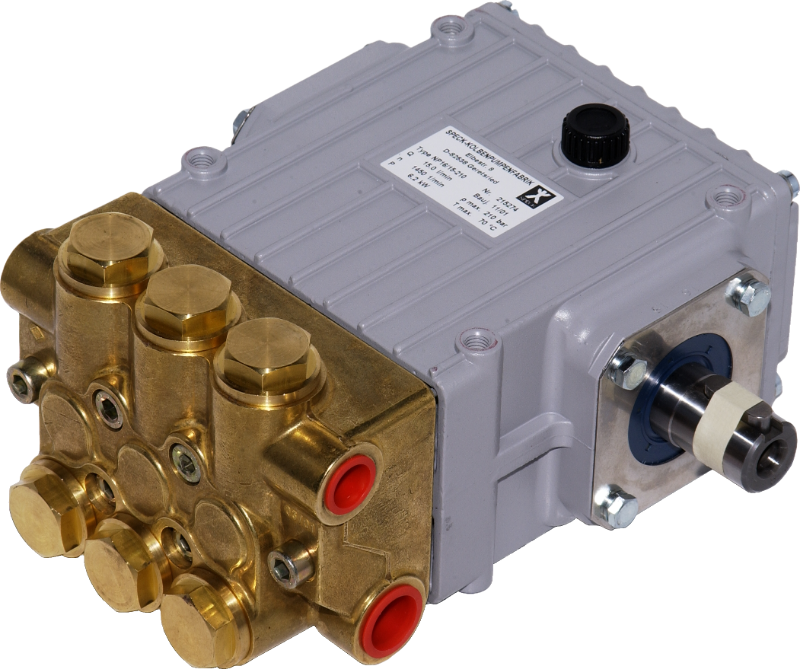

The NP16/15-210 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
Part Number | Description |
---|---|
00.5090 | NP16/15-210 |
00.5195 | NP16/15-210 Nickel Plated Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
