SPECK Kolbenpumpfabrik
NP16/21-140 Bareshaft Pump
NP16/21-140 Bareshaft Pump
Prices From
£737.50
Product
Info
Info
Flow
20.8
Pressure
140
Power
5.7
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 24 mm
- Plunger Dia. = 20 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

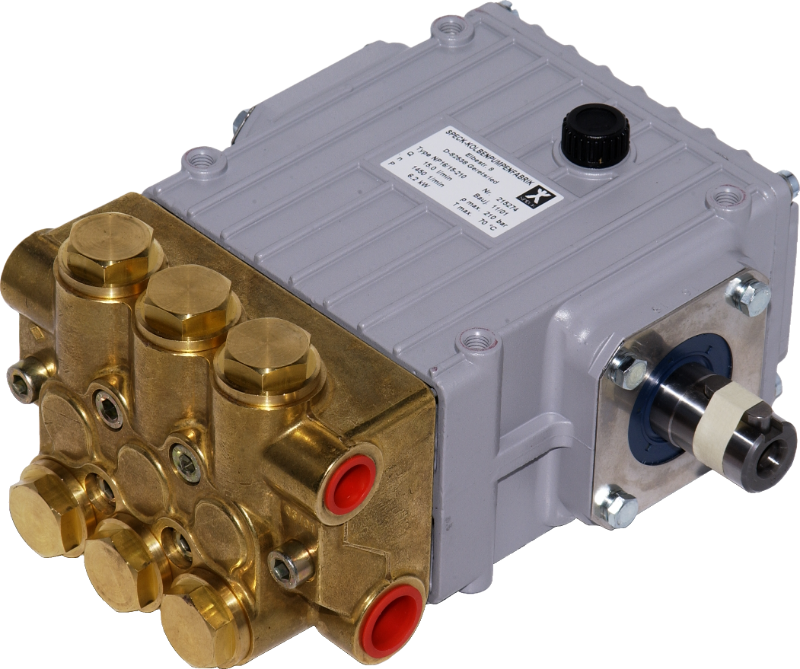

The NP16/21-140 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.5092 | NP16/21-140 |
| 00.5525 | NP16/21-140 Nickel Plated Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
