SPECK Kolbenpumpfabrik

NP25/12-500 R Bareshaft Pump

NP25/12-500 R Bareshaft Pump

Prices From £3,781.25
Product
Info
Flow
12.1
Pressure
500
Power
12.3
RPM
1450
Max Temp
40
Key Information
  • Crankshaft Diameter = 28 mm
  • Plunger Dia. = 14 mm
  • Inlet Connection = G1/2"
  • Outlet Connection = G3/8"

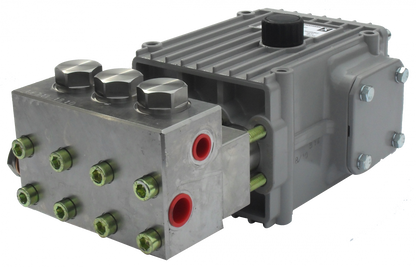

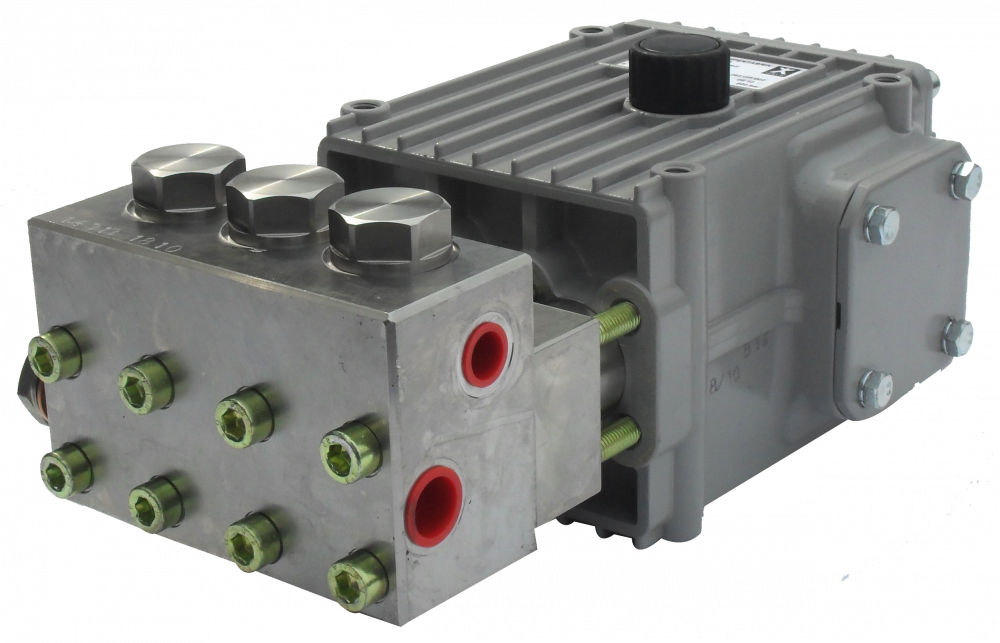

The NP25/12-500 R Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
303 Stainless Steel
This pump is available with the following Seal Options:
Nitrile Seals
Pump Information

Versions Available

Part Number Description
00.6157 NP25/12-500 R

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
