SPECK Kolbenpumpfabrik
NP25/15-500 R Bareshaft Pump
NP25/15-500 R Bareshaft Pump
Prices From
£4,106.25
Product
Info
Info
Flow
14.5
Pressure
500
Power
14.8
RPM
1450
Max Temp
40
Key Information
- Crankshaft Diameter = 28 mm
- Plunger Dia. = 14 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

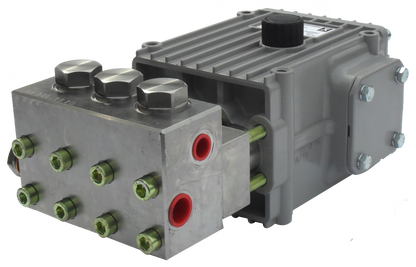

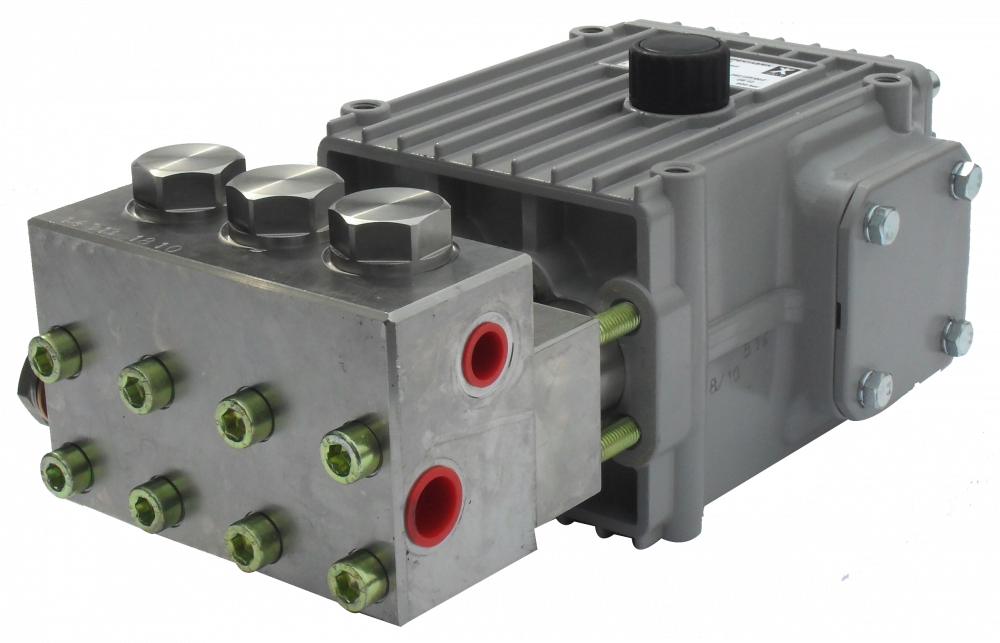

The NP25/15-500 R Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
303 Stainless Steel
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
303 Stainless Steel
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.6156 | NP25/15-500 R |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
