SPECK Kolbenpumpfabrik

NP25/25-250 Bareshaft Pump

NP25/25-250 Bareshaft Pump

Prices From £2,256.25
Product
Info
Flow
25
Pressure
250
Power
12.4
RPM
1450
Max Temp
70
Key Information
  • Crankshaft Diameter = 28 mm
  • Plunger Dia. = 18 mm
  • Inlet Connection = G1/28"
  • Outlet Connection = G3/34"

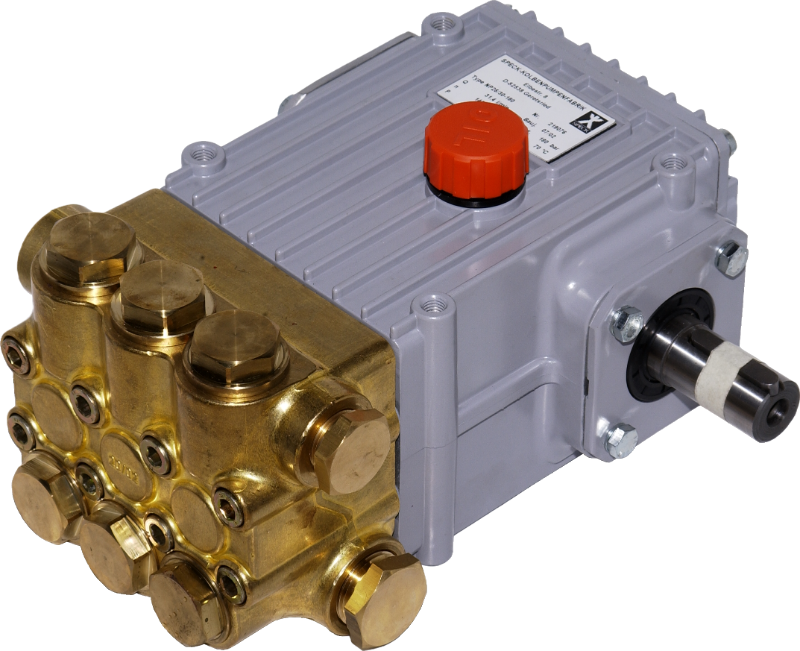

The NP25/25-250 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Pump Information

Versions Available

Part Number Description
00.6154 NP25/25-250
00.6394 NP25/25-250 RE 316 Stainless Steel Pump
00.6175 NP25/25-250 S Seawater Pump

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
