SPECK Kolbenpumpfabrik

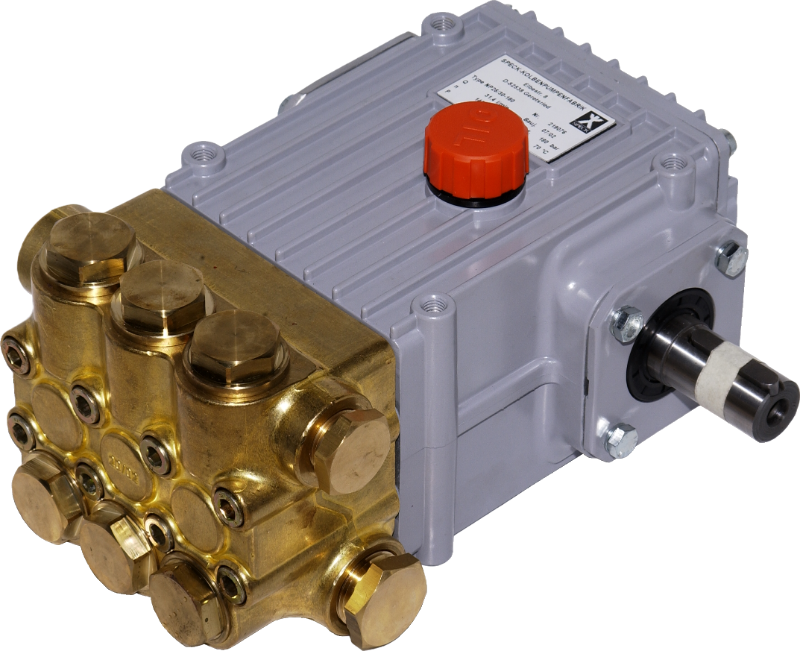

NP25/38-180 Bareshaft Pump

NP25/38-180 Bareshaft Pump

Prices From £2,012.50
Product
Info
Flow
37.3
Pressure
180
Power
13.2
RPM
1450
Max Temp
70
Key Information
  • Crankshaft Diameter = 28 mm
  • Plunger Dia. = 22 mm
  • Inlet Connection = G1"
  • Outlet Connection = G3/4"
The NP25/38-180 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Pump Information

Versions Available

Part Number Description
00.6152 NP25/38-180
00.6204 NP25/38-180 RE 316 Stainless Steel Pump

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.

Regular price £2,012.50 GBP
Regular price £2,012.50 GBP Sale price £2,012.50 GBP
Sale Available to Order
View full details
