SPECK Kolbenpumpfabrik
NP25/38-280 Bareshaft Pump
NP25/38-280 Bareshaft Pump
Prices From
£2,681.25
Product
Info
Info
Flow
37.3
Pressure
280
Power
20.6
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 28 mm
- Plunger Dia. = 22 mm
- Inlet Connection = G1"
- Outlet Connection = G3/4"

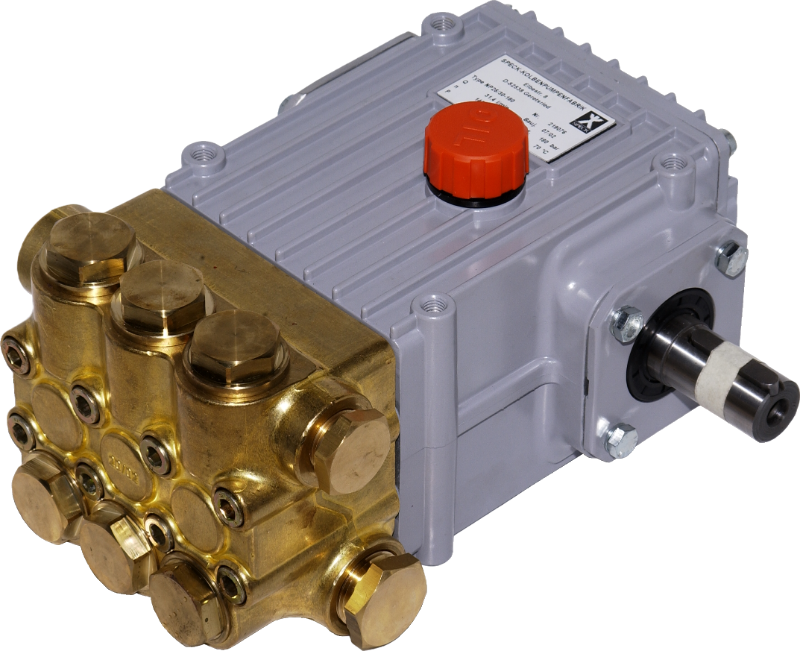

The NP25/38-280 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.6715 | NP25/38-280 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
