NP25/41-210 Bareshaft Pump
NP25/41-210 Bareshaft Pump
Prices From
£2,681.25
Product
Info
Info
Flow
40.6
Pressure
210
Power
16.8
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 28 mm
- Plunger Dia. = 25 mm
- Inlet Connection = G1"
- Outlet Connection = G3/4"

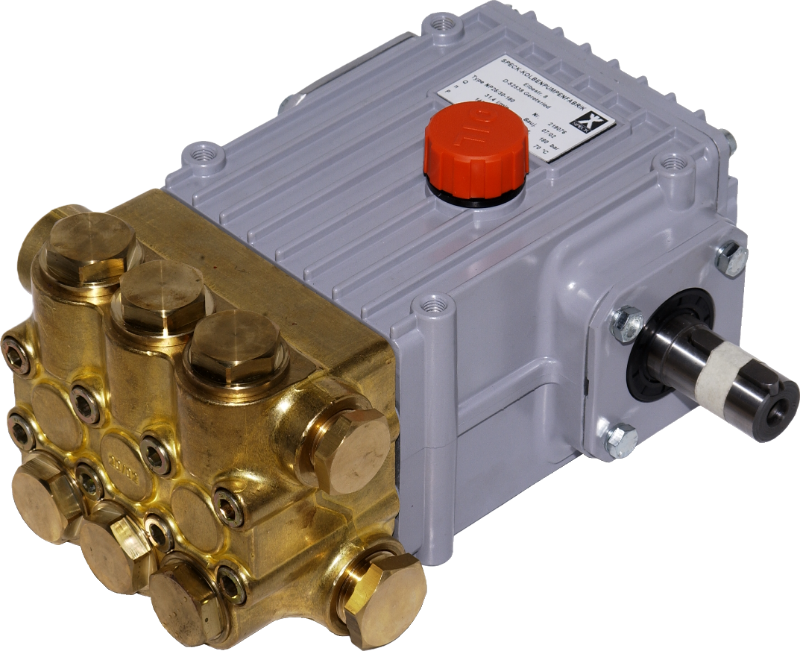

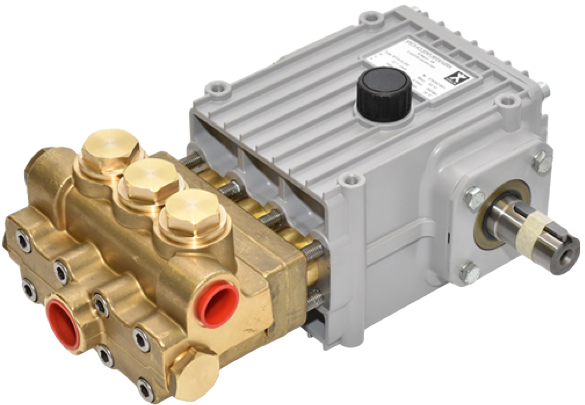

The NP25/41-210 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.6736 | NP25/41-210 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
