SPECK Kolbenpumpfabrik

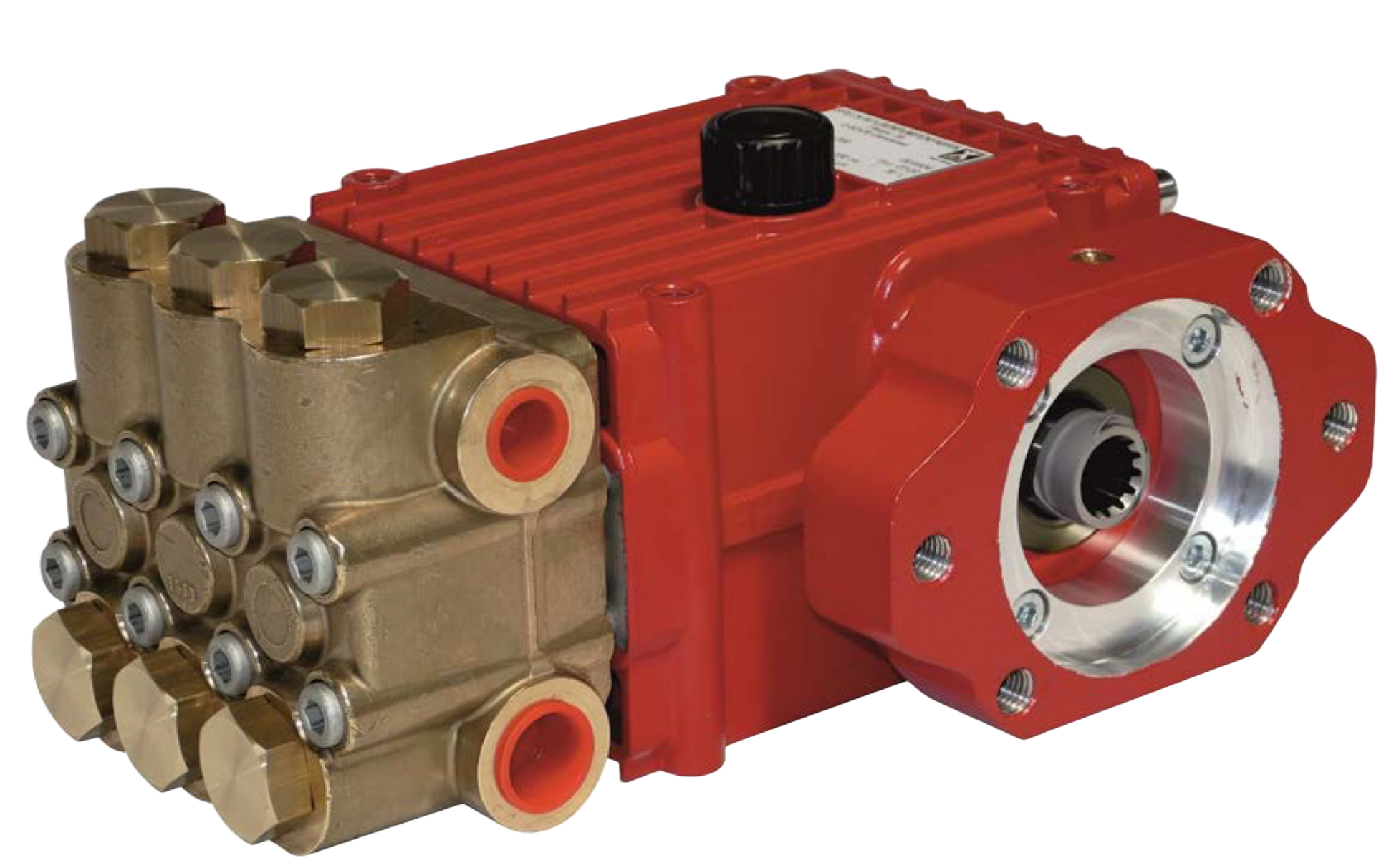

NP25/60-140 Hollowshaft Pump
NP25/60-140 Hollowshaft Pump
Prices From
£3,406.25
Product
Info
Info
Flow
59.5
Pressure
140
Power
16.3
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = Hollowshaft Version mm
- Plunger Dia. = 30 mm
- Inlet Connection = G1""
- Outlet Connection = G3/4""
The NP25/60-140 Hollowshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.7454 | NP25/60-140 Hollowshaft Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
Regular price
£3,406.25 GBP
Regular price
£3,406.25 GBP
Sale price
£3,406.25 GBP
Unit price
per
Couldn't load pickup availability
Compatible Unloader Valves
