SPECK Kolbenpumpfabrik
NP30/140-100 Bareshaft Pump
NP30/140-100 Bareshaft Pump
Prices From
£5,537.50
Product
Info
Info
Flow
134
Pressure
100
Power
26.300000
RPM
1450
Max Temp
40
Key Information
- Crankshaft Diameter = 30 mm
- Plunger Dia. = 40 mm
- Inlet Connection = G1 1/2"
- Outlet Connection = G1"

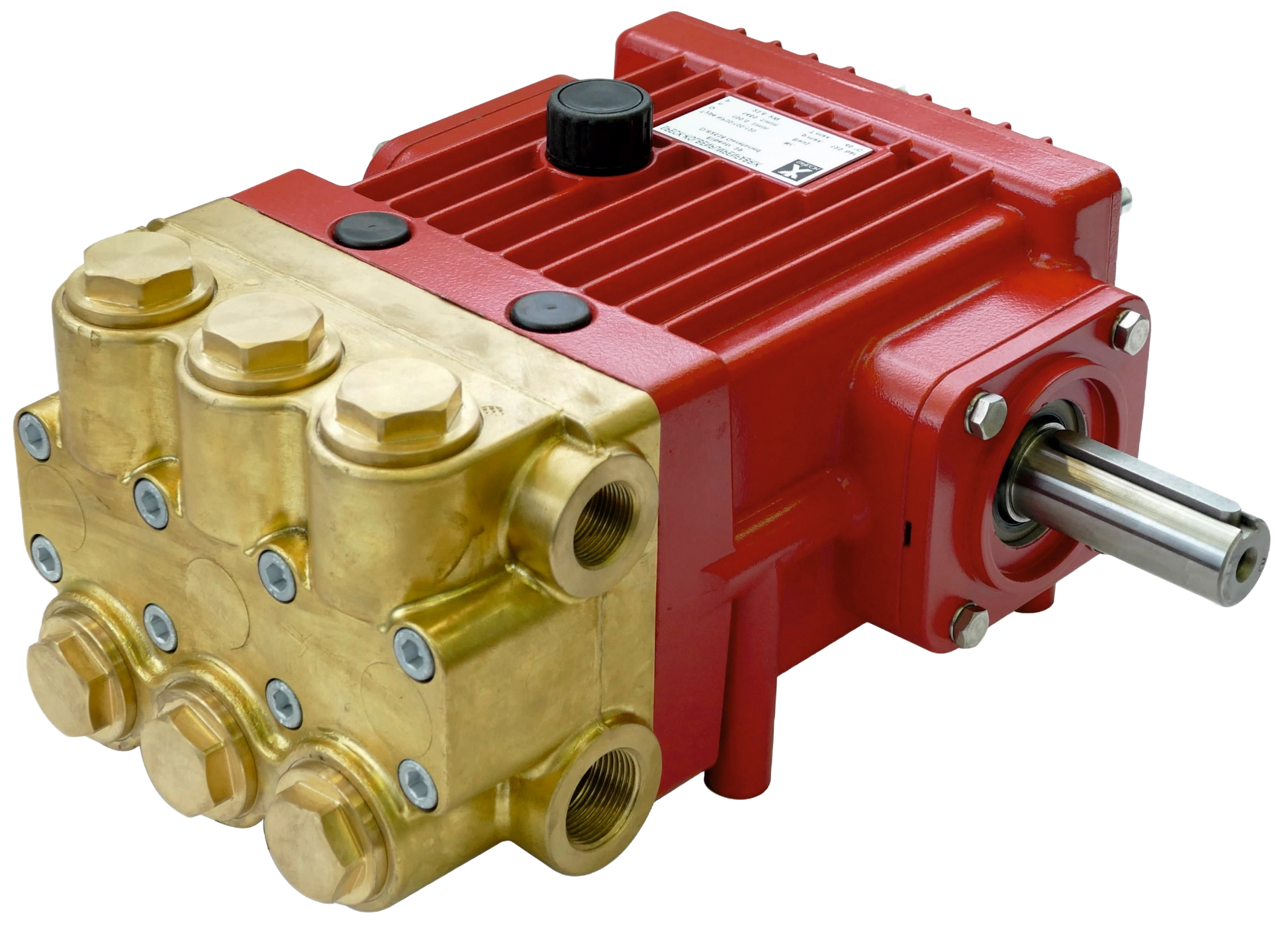

The NP30/140-100 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Versions Available
| Part Number | Description |
|---|---|
| 00.7020 | NP30/140-100 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
