SPECK Kolbenpumpfabrik
P21/15-160 Bareshaft Pump
P21/15-160 Bareshaft Pump
Prices From
£956.25
Product
Info
Info
Flow
14.7
Pressure
160
Power
4.6
RPM
1420
Max Temp
70
Key Information
- Crankshaft Diameter = 22 mm
- Plunger Dia. = 18 mm
- Inlet Connection = G1/2"
- Outlet Connection = G3/8"

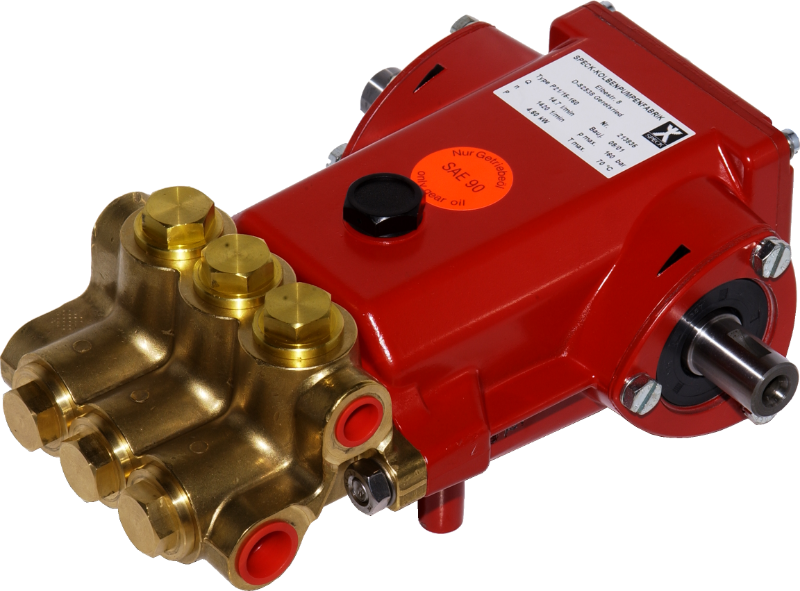

The P21/15-160 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.0543 | P21/15-160 |
| 00.0732 | P20/15-160 RE 316 Stainless Steel Pump |
| 00.1314 | P21/15-160 S Seawater Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
