P22/28-130 Bareshaft Pump
P22/28-130 Bareshaft Pump
Prices From
£1,243.75
Product
Info
Info
Flow
28.3
Pressure
130
Power
7.5
RPM
1450
Max Temp
70
Key Information
- Crankshaft Diameter = 24 mm
- Plunger Dia. = 22 mm
- Inlet Connection = G3/4"
- Outlet Connection = G1/2"

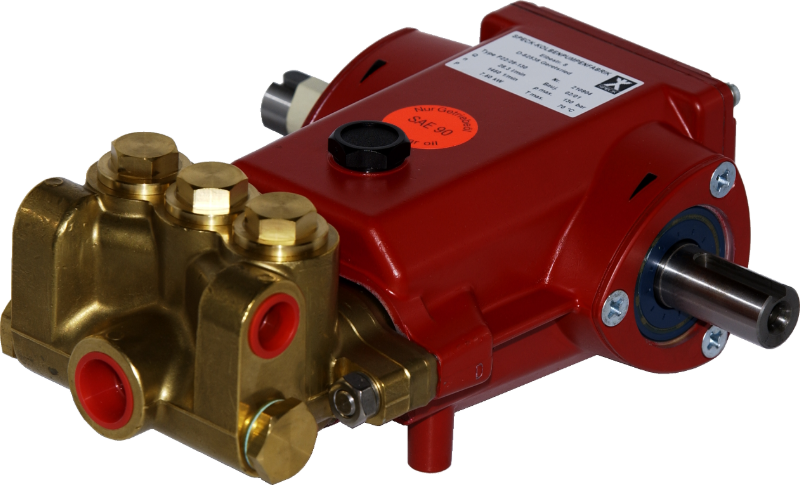

The P22/28-130 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.4767 | P22/28-130 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
