SPECK Kolbenpumpfabrik
P41/48-180 Bareshaft Pump
P41/48-180 Bareshaft Pump
Prices From
£4,950.00
Product
Info
Info
Flow
48.6 L/min
Pressure
180 Bar
Power
17.9 kW
RPM
1450 RPM
Max Temp
70 °C
Key Information
- Crankshaft Diameter = 28 mm
- Plunger Dia. = 24 mm
- Inlet Connection = G1"
- Outlet Connection = G3/4"

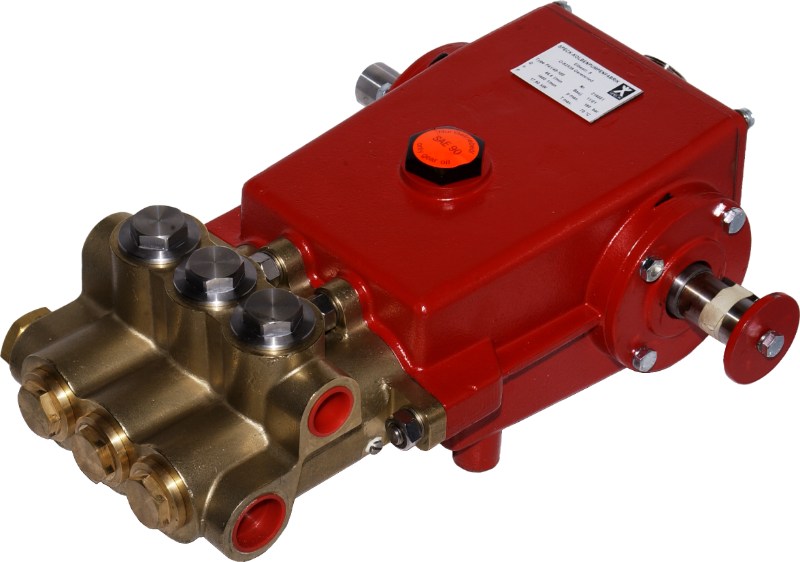

The P41/48-180 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.1000 | P41/48-180 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
