P50/94-110 Bareshaft Pump
P50/94-110 Bareshaft Pump
Prices From
£7,131.25
Product
Info
Info
Flow
93.8
Pressure
110
Power
20.3
RPM
800
Max Temp
70
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 36 mm
- Inlet Connection = G1 - 1/4"
- Outlet Connection = G1"

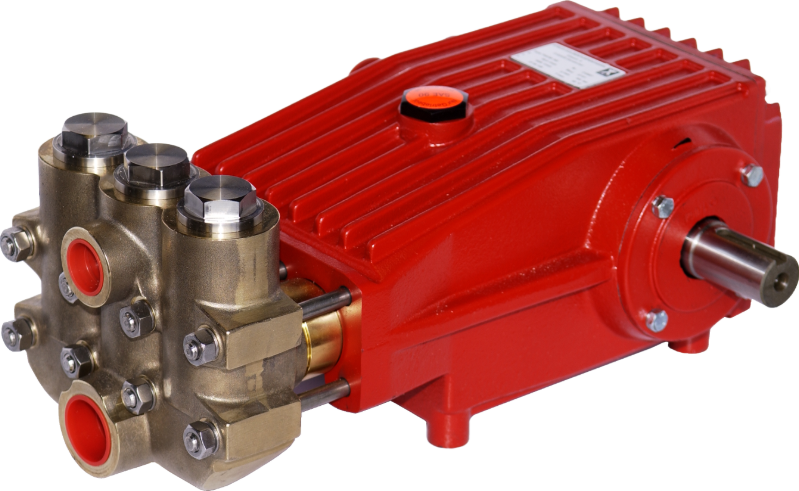

The P50/94-110 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.0458 | P50/94-110 |
| 00.1704 | P50/94-110 R 303 Stainless Steel Pump |
| 00.0938 | P50/94-110 RE 316 Stainless Steel Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
