P50/94-110 D Bareshaft Pump
P50/94-110 D Bareshaft Pump
Prices From
£8,506.25
Product
Info
Info
Flow
66.8
Pressure
80
Power
10.5
RPM
570
Max Temp
105
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 36 mm
- Inlet Connection = G1 - 1/4"
- Outlet Connection = G1"

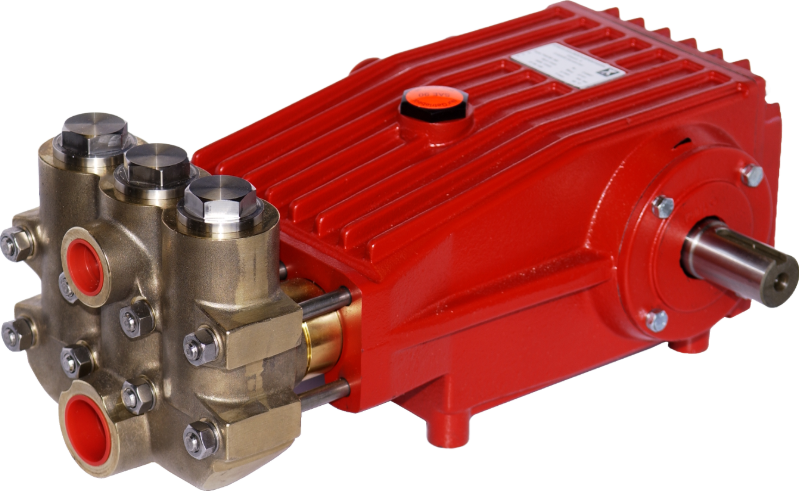

The P50/94-110 D Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.2642 | P50/94-110 D |
00.3806 | P50/94-110 DK Hot Water Pump With Cooling Pipe Connections |
00.5048 | P50/94-110 RD 303 Stainless Steel Hot Water Pump |
00.3714 | P50/94-110 RDK 303 Stainless Steel Hot Water Pump With Cooling Pipe Connections |
00.5786 | P50/94-110 REDK 316 Stainless Steel Hot Water Pump |
P |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
