P51/135-90 Bareshaft Pump
P51/135-90 Bareshaft Pump
Prices From
£7,168.75
Product
Info
Info
Flow
134.1
Pressure
90
Power
23.8
RPM
800
Max Temp
60
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 42 mm
- Inlet Connection = G1 - 1/2"
- Outlet Connection = G1"

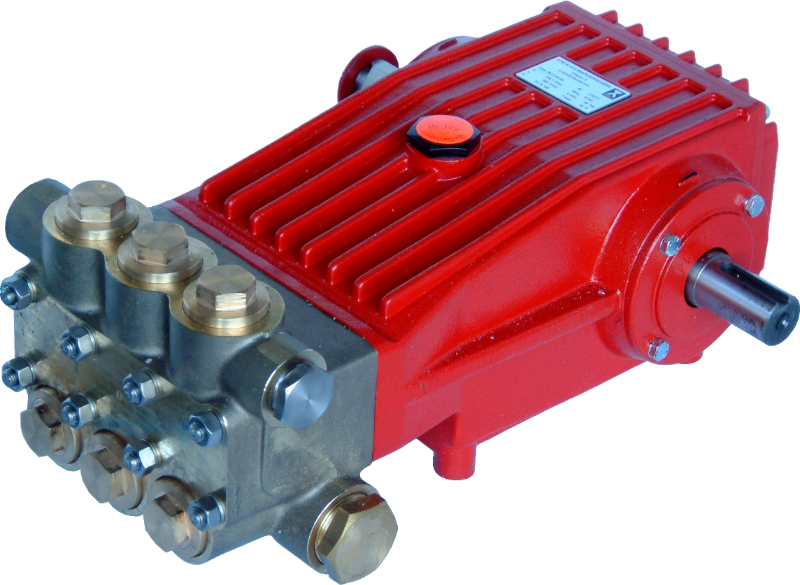

The P51/135-90 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.5088 | P51/135-90 |
| 00.5364 | P51/135-90 DUP Duplex Stainless Steel Pump |
| 00.4784 | P51/135-90 RE 316 Stainless Steel Pump |
| 00.4783 | P51/135-90 S Seawater Pump |
| 00.4448 | P51/135-90 Bronze Headed Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
