SPECK Kolbenpumpfabrik
P52/120-120 Bareshaft Pump
P52/120-120 Bareshaft Pump
Prices From
£6,693.75
Product
Info
Info
Flow
123.1
Pressure
120
Power
29.1
RPM
1000
Max Temp
60
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 36 mm
- Inlet Connection = G1 - 1/2"
- Outlet Connection = G1"

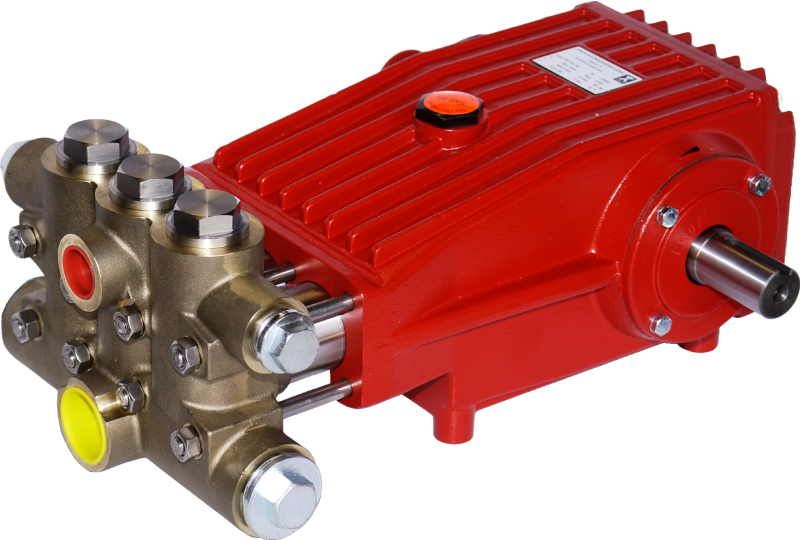

The P52/120-120 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.4263 | P52/120-120 |
| 00.4426 | P52/120-120 R 303 Stainless Steel Pump |
| 00.4421 | P52/120-120 RE 316 Stainless Steel Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
