SPECK Kolbenpumpfabrik
P52/72-200 Bareshaft Pump
P52/72-200 Bareshaft Pump
Prices From
£6,693.75
Product
Info
Info
Flow
72.2
Pressure
200
Power
28.4
RPM
1000
Max Temp
60
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 28 mm
- Inlet Connection = G1 - 1/2"
- Outlet Connection = G1"

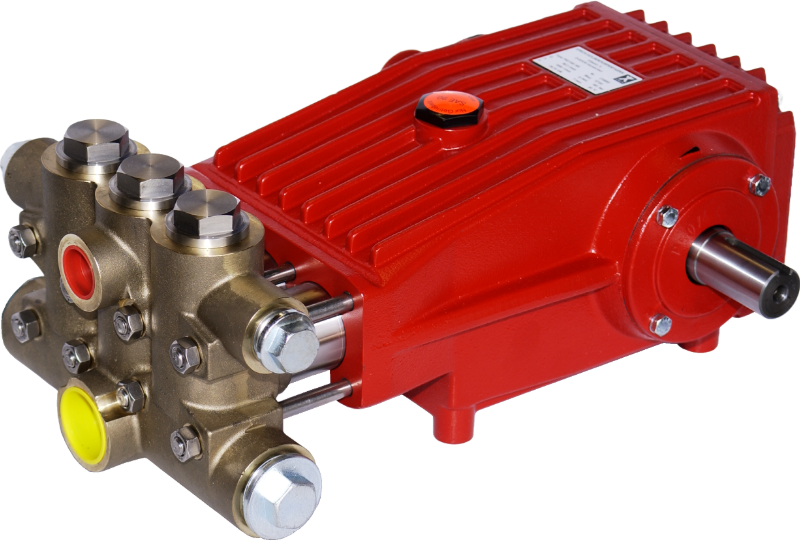

The P52/72-200 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.4262 | P52/72-200 |
| 00.4424 | P52/72-200 R 303 Stainless Steel Pump |
| 00.4419 | P52/72-200 RE 316 Stainless Steel Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
