SPECK Kolbenpumpfabrik
P55/80-280 G Bareshaft Pump
P55/80-280 G Bareshaft Pump
Prices From
£6,693.75
Product
Info
Info
Flow
78
Pressure
280
Power
41.8
RPM
1000
Max Temp
60
Key Information
- Crankshaft Diameter = 35 mm
- Plunger Dia. = 28 mm
- Inlet Connection = G1 - 1/2"
- Outlet Connection = G1"

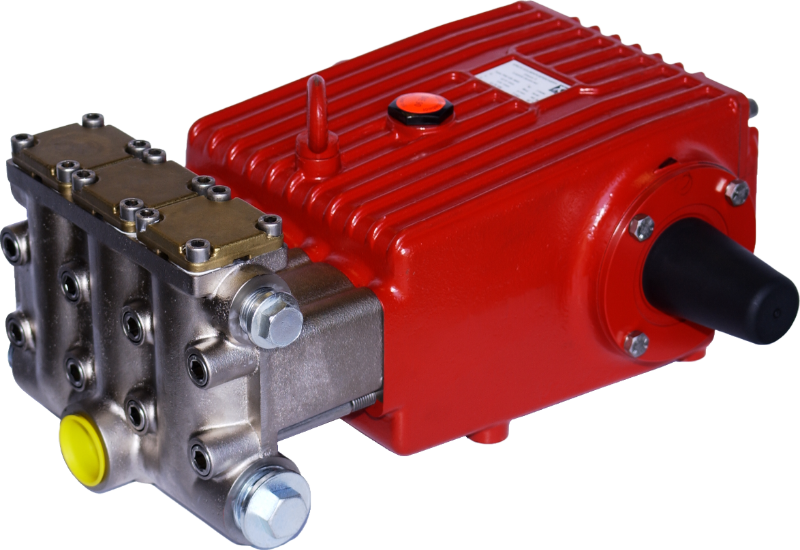

The P55/80-280 G Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Cast Iron
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Cast Iron
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
| Part Number | Description |
|---|---|
| 00.6698 | P55/80-280 G |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
