SPECK Kolbenpumpfabrik

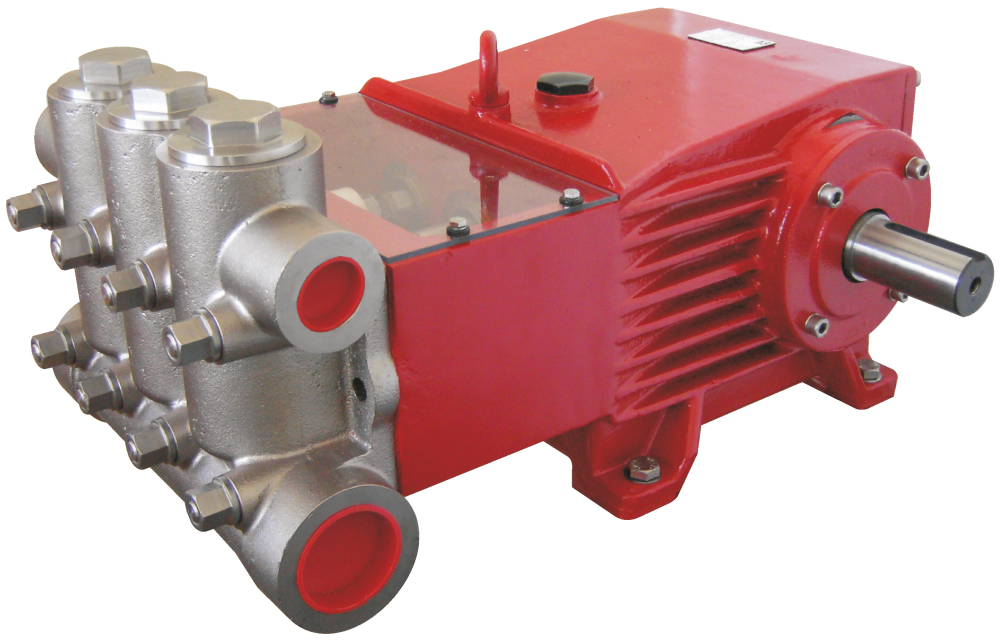

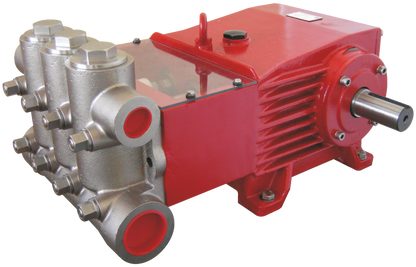

P71/110-260 Bareshaft Pump

P71/110-260 Bareshaft Pump

Prices From £21,806.25
Product
Info
Flow
107.3
Pressure
260
Power
54.9
RPM
700
Max Temp
60
Key Information
  • Crankshaft Diameter = 48 mm
  • Plunger Dia. = 36 mm
  • Inlet Connection = G1 - 1/4"
  • Outlet Connection = G3/4"
The P71/110-260 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Pump Information

Versions Available

Part Number Description
00.4317 P71/110-260
00.4434 P71/110-250 R 303 Stainless Steel Pump

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
