P71/145-190 Bareshaft Pump
P71/145-190 Bareshaft Pump
Prices From
£21,806.25
Product
Info
Info
Flow
145.2
Pressure
190
Power
54.3
RPM
700
Max Temp
60
Key Information
- Crankshaft Diameter = 48 mm
- Plunger Dia. = 42 mm
- Inlet Connection = G2 - 1/2"
- Outlet Connection = G1 - 1/4"

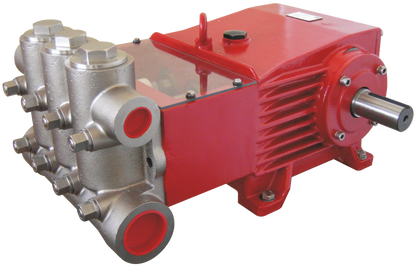

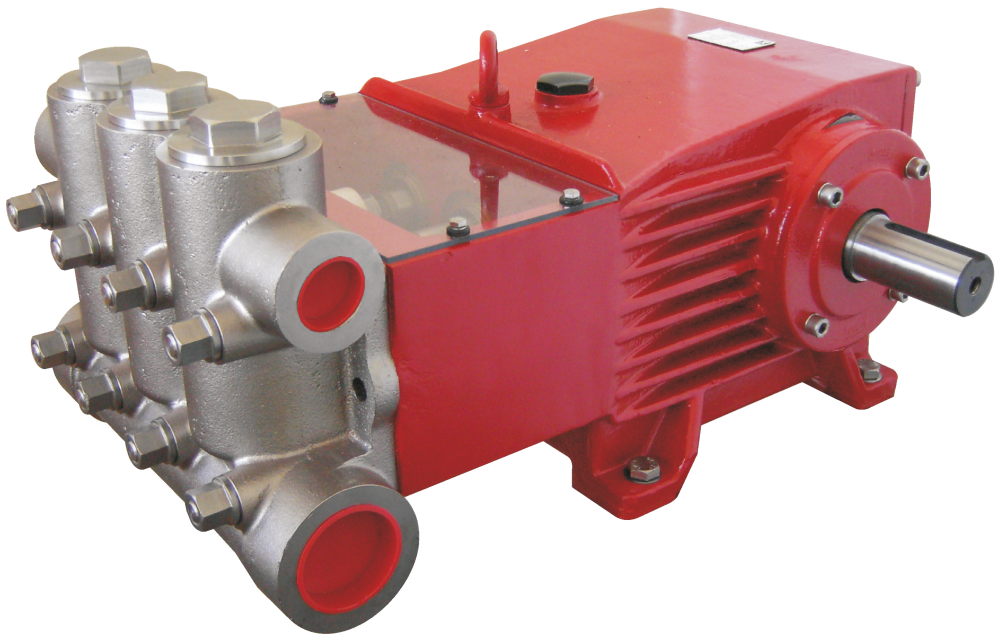

The P71/145-190 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile,Teflon,Viton Seals
Versions Available
Part Number | Description |
---|---|
00.4318 | P71/145-190 |
00.4354 | P71/145-180 G Cast Iron Headed Pump |
00.4435 | P71/145-180 R 303 Stainless Steel Pump |
00.4970 | P71/145-180 RE 316 Stainless Steel Pump |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
