SPECK Kolbenpumpfabrik

P71/50-500 R Bareshaft Pump

P71/50-500 R Bareshaft Pump

Prices From £22,968.75
Product
Info
Flow
48.2
Pressure
510
Power
48.4
RPM
750
Max Temp
60
Key Information
  • Crankshaft Diameter = 48 mm
  • Plunger Dia. = 24 mm
  • Inlet Connection = G1 - 1/4"
  • Outlet Connection = G3/4"

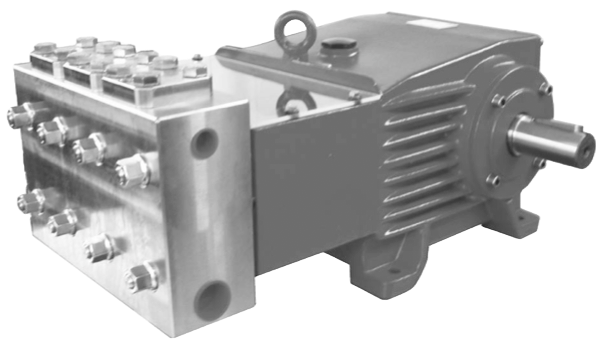

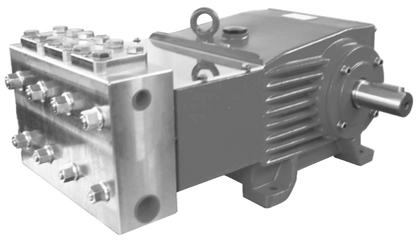

The P71/50-500 R Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
303 Stainless Steel
This pump is available with the following Seal Options:
Nitrile,Viton Seals
Pump Information

Versions Available

Part Number Description
00.4432 P71/50-500 R

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
