P75/265-175 Bareshaft Pump
P75/265-175 Bareshaft Pump
Prices From
£19,550.00
Product
Info
Info
Flow
264
Pressure
175
Power
90
RPM
900
Max Temp
30
Key Information
- Crankshaft Diameter = 48 mm
- Plunger Dia. = 50 mm
- Inlet Connection = G2 - 1/2"
- Outlet Connection = G1 - 1/4"

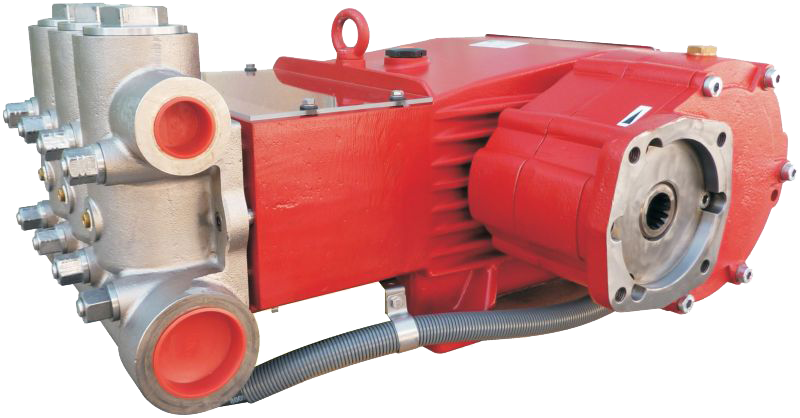

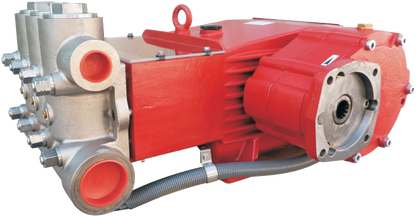

The P75/265-175 Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.6786 | P75/265-175 |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
