SPECK Kolbenpumpfabrik

P80/110-500 Bareshaft Pump

P80/110-500 Bareshaft Pump

Prices From £41,262.50
Product
Info
Flow
110
Pressure
500
Power
106
RPM
580
Max Temp
30
Key Information
  • Crankshaft Diameter = 70 mm
  • Plunger Dia. = 35 mm
  • Inlet Connection = G2 - 1/2"
  • Outlet Connection = G1 - 1/4"

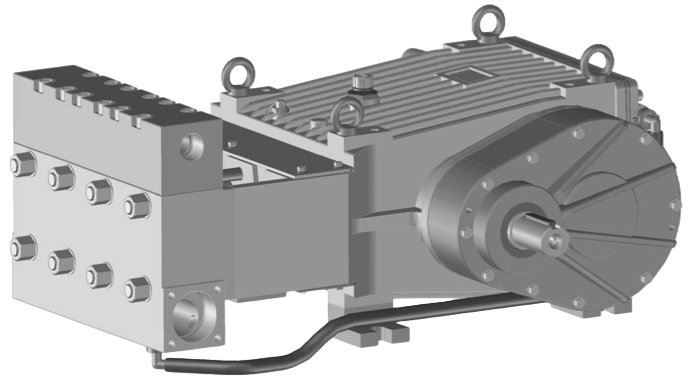

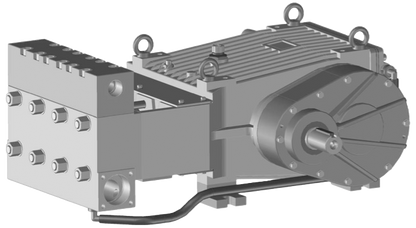

The P80/110-500 Bareshaft Pump is a high pressure 3 plunger triplex pump.

This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Pump Information

Versions Available

Part Number Description
00.5845 P80/110-500

Description

  • Brass Valve Casings on standard versions
  • Solid ceramic plungers
  • Double plunger sealing with leakage return
  • All gaskets in seal sleeves ensuring precise centring and easy replacement
  • Identical suction and discharge valves, easily replaceable
  • Crankcase from aluminium
  • Pump easily configured for left and right hand drive

The majority of spares for these pumps are available from stock.
