P80/650-80B Bareshaft Pump
P80/650-80B Bareshaft Pump
Prices From
£37,112.50
Product
Info
Info
Flow
650
Pressure
80
Power
100
RPM
530
Max Temp
40
Key Information
- Crankshaft Diameter = 70 mm
- Plunger Dia. = 85 mm
- Inlet Connection = G3"
- Outlet Connection = G1 - 1/2"

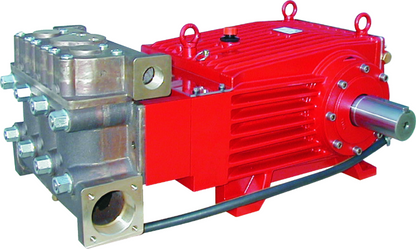

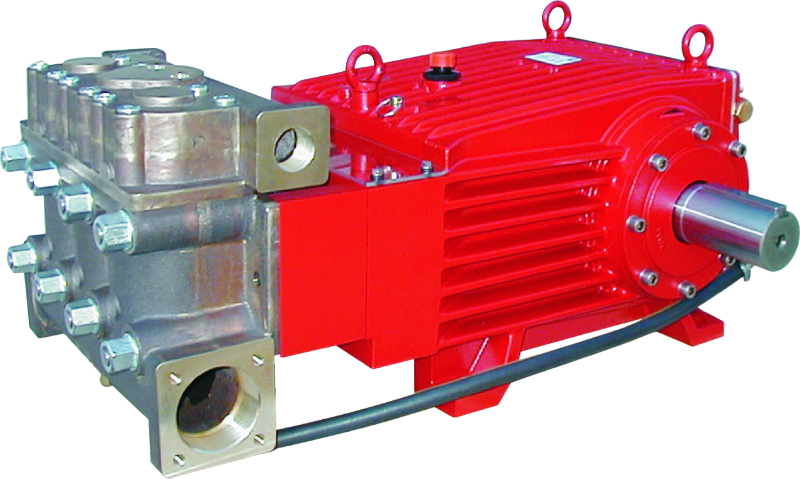

The P80/650-80B Bareshaft Pump is a high pressure 3 plunger triplex pump.
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
This pump is available with the following Material Options:
Brass
This pump is available with the following Seal Options:
Nitrile Seals
Versions Available
Part Number | Description |
---|---|
00.6839 | P80/650-80B |
Description
- Brass Valve Casings on standard versions
- Solid ceramic plungers
- Double plunger sealing with leakage return
- All gaskets in seal sleeves ensuring precise centring and easy replacement
- Identical suction and discharge valves, easily replaceable
- Crankcase from aluminium
- Pump easily configured for left and right hand drive
The majority of spares for these pumps are available from stock.
