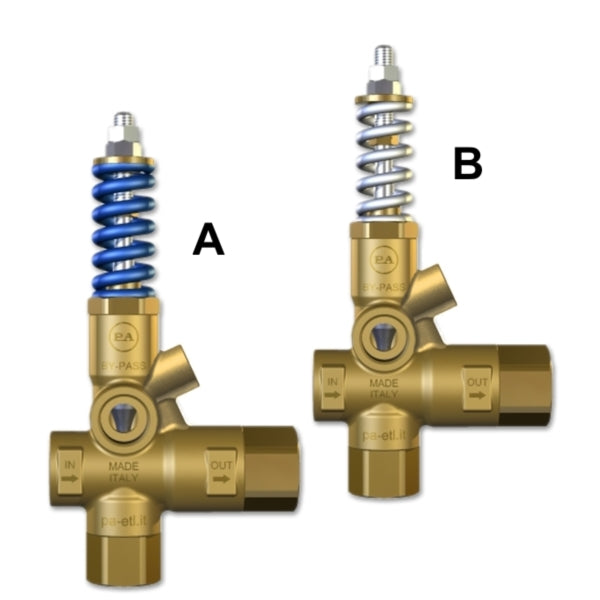

VB 85/180 - VB 85/310 with gauge port

VB 85/180 - VB 85/310 with gauge port

Prices From £233.60
P.A. S.p.A.

VB-85 Unloader Valve (VB-85/180 & VB-85/310)

PA VB-85 Unloader Valve with gauge port
  • Max Flow 80 L/min
  • Up to 310 bar
  • 90 °C
  • 1/2" BSP-F ports

Heavy-duty trapped-pressure unloader (bypass) valve for high-pressure washing systems. VB-85 provides smooth pressure regulation, automatic bypass when the spray gun is closed, and a convenient 1/4" gauge port for system monitoring.

Model variants

Part No. Model Threads Rated Pressure Permitted Pressure Rated Flow Temp Weight
60.0427.00 VB-85 RV/180 (knob) 1/2" BSP-F (in/out/bypass) 160 bar 180 bar 80 L/min 90 °C 1.16 kg
60.0427.05 VB-85 RV/180 (NPT, knob) 1/2" NPT-F (in/out/bypass) 160 bar 180 bar 80 L/min 90 °C 1.14 kg
60.0427.60 VB-85 RV/310 (knob) 1/2" BSP-F (in/out/bypass) 280 bar 310 bar 80 L/min 90 °C 1.19 kg
60.0427.65 VB-85 RV/310 (NPT, knob) 1/2" NPT-F (in/out/bypass) 280 bar 310 bar 80 L/min 90 °C 1.17 kg

Key specifications

  • Rated flow: 80 L/min (21 US gpm)
  • Temperature: up to 90 °C
  • Pressure range: 160–310 bar (model dependent)
  • Body: brass; internals: steel/stainless seats
  • Trapped-pressure unloader operation
  • Gauge port for pressure monitoring

Operation

Entire pump discharge is routed through the valve. When set pressure is exceeded during spraying, the valve regulates system pressure. When the gun is released, the valve diverts to pressure-free bypass while line pressure remains trapped upstream of the gun, ready for instant restart.

Safety notes

  • Observe flow direction. Do not block or restrict the bypass line.
  • Prolonged bypass can heat water; limit bypass duration.
  • Set relief pressure using a calibrated gauge on the 1/4" port.

Downloads

Weight: 1.14 kg

£233.60 GBP
