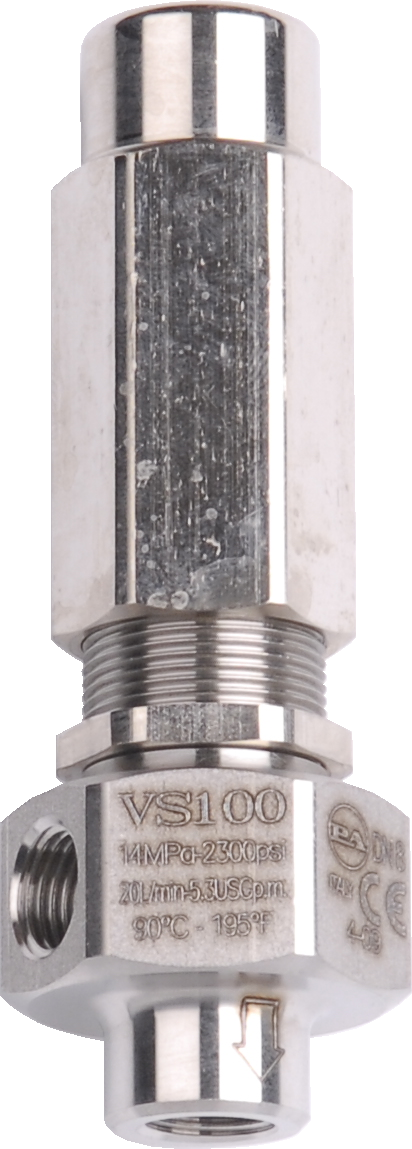

VS100 AISI 316 Stainless Steel Relief Safety Valve With Viton O Rings

Description

VS100 AISI 316 Pressure relief valve regulates the bypass of the fluid with a minimum variation of pressure.

The valves supplied are NOT PRESSURE ADJUSTED. They become a SAFETY device when adjusted by the installer on the machine. See Technical Manual.

Common Features

Part No.

60.0470.60 VS100 AISI 316 Relief / Safety Valve

Inlet 1/4 Bsp F

Bypass . 1/4 Bsp F

Rated Pressure -

60.0470.60- 125 bar - 12.5 MPa - 1813 psi

Permissible Pressure -

60.0470.60- 140 bar - 14 MPa - 2300 psi

Rated Flow Rate - 20 l/min - 5.3 USGpm

Rated Temperature - 90 C
